Einleitung

How to replace the WiFi Wireless Card of an Acer Aspire 4520-5464 laptop.

  1. 3VFrUWkRfEyCPf1S
    • Shut down the computer and disconnect all external devices and cables.

    • Flip the computer over.

  2. RIK3DXVTxJUsirZi
    RIK3DXVTxJUsirZi
    N5ZcYn1HFImh3ibd
    • Ensure that the battery compartment lock tab is in the unlocked position.

    • Slide the sliding black tab away from the battery compartment.

    • The inside edge of the battery should be released, causing it to slightly pop out of the compartment.

  3. XeEBiJhH2wfS15SR
    • Grasp the inside edge of the battery and lift to fully detach the battery from the computer.

  4. FOLHsKBpkGILllFs
    FOLHsKBpkGILllFs

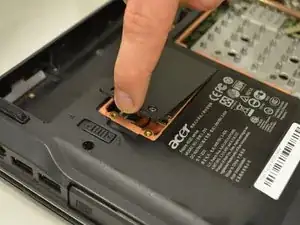

    tKNkGRD6umxtC6rE
    • Using the Phillips #1 screwdriver, remove the two 0.5mm screws from the smallest panel on the back of the computer.

    • Set the screws aside.

    • Lift up the panel using the indent located on the left side of the panel.

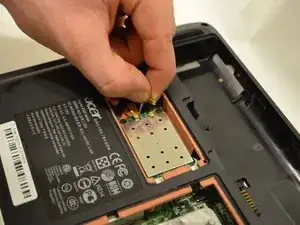

  5. 5PwX5VAdCDesFOPk
    • Remove both the black and white wires by pinching the brass connectors and pulling up.

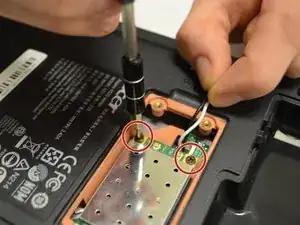

  6. LhYT4ESjKBXrCpcV
    • Remove the two 0.5mm Phillips #1 black screws located on the WiFi card.

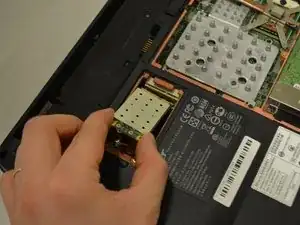

  7. aYwFNlEGGG6aArb5
    • Lift the WiFi card on the left side to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order with a new WiFi wireless card.
