Acer Aspire 4743-6481 Screen Replacement

Geschrieben von: Juan Seijas
  • Kommentare: 0
Acer Aspire 4743-6481 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 50 Minuten

Einleitung

If your device's screen display is distorted, cracked, flickers, or has tiny dots, replacing the screen will probably solve these issues.

  1. I6i1vEF6DNXjUYUS

    • Turn over the laptop to view the underside.

  2. q31OPtIHaMSB6pEL

    • Use tweezers (or a similar tool) to slide the orange push pin. To release the battery, push it to the left.

  3. JcQHIXQnrnjaRrgt

    • You can lift the battery up and out now.

  4. rWIfrLBdEnydbclv

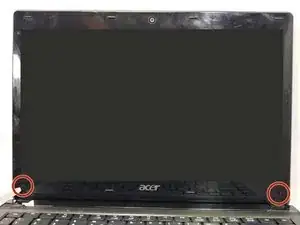

    • Position the laptop so you have a clear view of the front of the screen.

    • Remove the two screw covers at the bottom sides of the screen casing using a flat tool.

    • Remove the two 5.0 mm Phillips screws. They will be directly underneath the screw covers.

  5. Osp2tEuJ1jBOSXCD

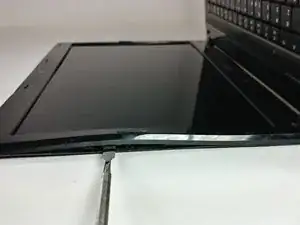

    • Use a flat tool, to pry open along every side of the front casing of the screen.

    • It will require a small amount of force to grudge open. Make sure every side of the casing is loose before removing it.

    • You should use a metal pry tool only if you are unsuccessful with a plastic one. The metal tool could cause damage to your device.

  6. PxiFGlPmPgnEPbfl

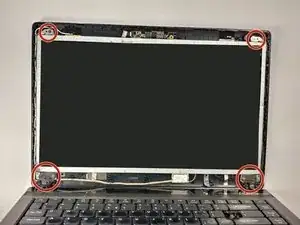

    • Remove the front casing.

    • Remove the four 5.0 mm Phillips screws located next to every corner of the screen.

  7. jBsGodFqo4tDWinR

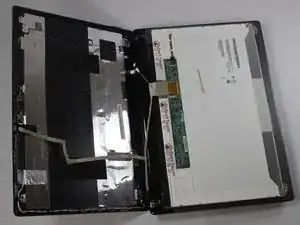

    • After removing the screws, gently place the screen on top of the keyboard.

    • Do not attempt to remove the screen yet since it is not fully disconnected from the laptop.

    • You may use a piece of cloth or similar material beneath the new screen to avoid scratching it with the other surface.

  8. GhqiELkbGv4Q4uNh
    GhqiELkbGv4Q4uNh
    dPBUVwJKfAw4NCya
    GbR1GsZxxDdGkq5t

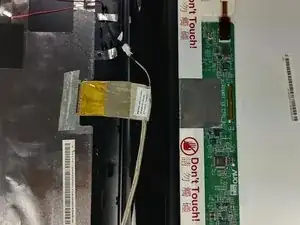

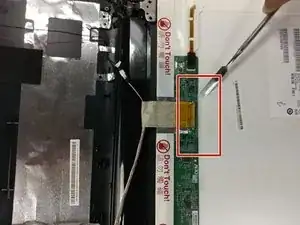

    • Gently remove the tape that covers the connector cable, as highlighted in the first picture.

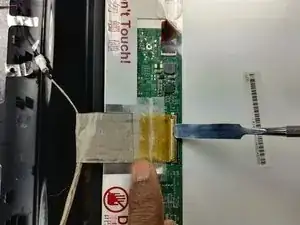

    • With a flat tool, gently disconnect the connector cable from the damaged screen.

  9. J5rROxlbNvrunsj6

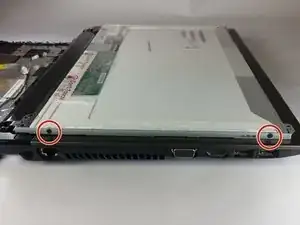

    • Remove the four remaining 3.5 mm Phillips screws from the screen piece.

    • There will be two screws on each side, one on the bottom and another on the top.

  10. 1vjCYphJpGIqC1He

    • The screen can be easily removed from its frame now.

Abschluss

To reassemble your device, carefully follow these instructions in reverse order.
