Acer Aspire 4810TZ-4120 Fan Replacement

Lay the acer upside down

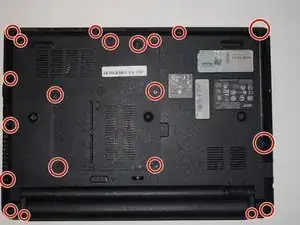

Use your screwdriver to unscrew all 19 two 5mm Phillips screws from the case

After unscrewing all the screws, lift the case upwards and remove it

Go on the side of the computer

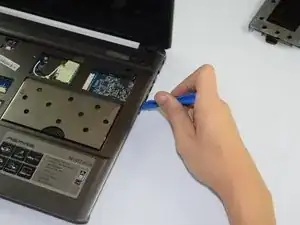

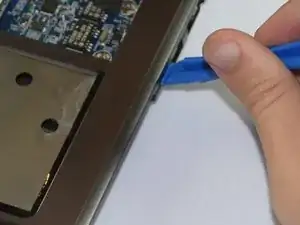

Use the plastic opening tool and press it in between the upper case and lover case

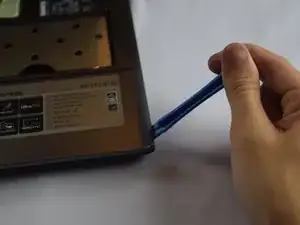

When the plastic tool is in between the cases, start going around the computer until both case are officially not connected

Get a pair of tweezers

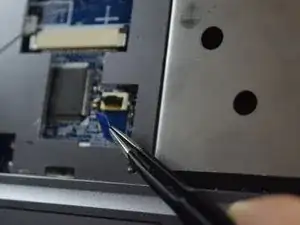

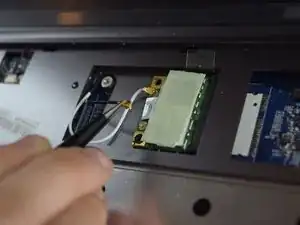

Start to detach the wires that are connected to the computer

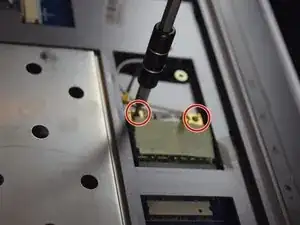

Get a screwdriver and unscrew the screws that are circled in the picture

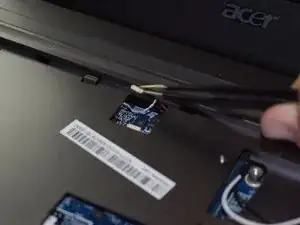

Repeat Step 3 for detaching the rest of the tape

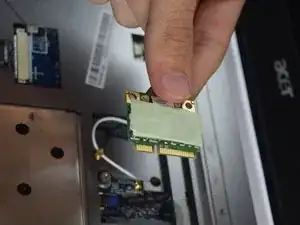

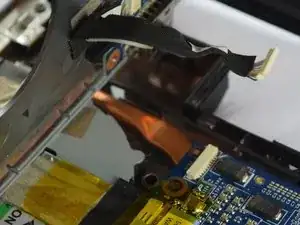

Disconnect all wires from the boards

Lift up the upper case

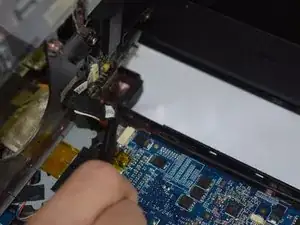

Disconnect the power supply wiring (the black wire)

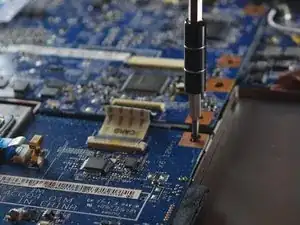

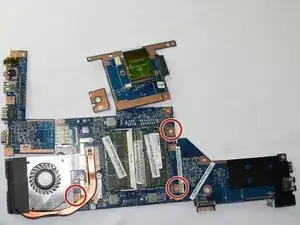

Remove the three screws

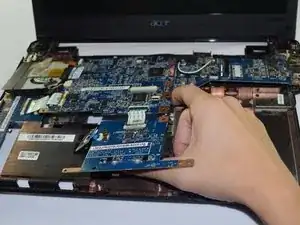

Pull the boards upward

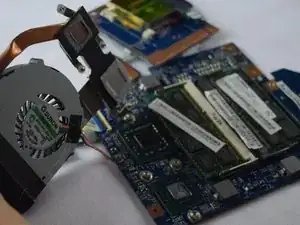

Flip the boards upside down

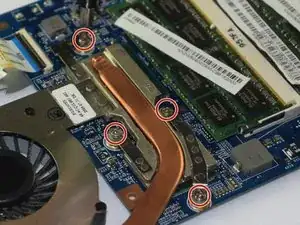

Remove the four (4) screws that are holding the CPU's cover on

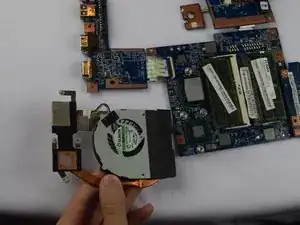

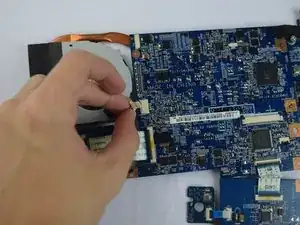

Gently detached the wire that is connected to the computer
