Acer Aspire 4810TZ-4120 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

This guide provides detailed steps to replace keyboard for an Acer Aspire 4810TZ-4120

Werkzeuge

  1. Whe4SYP5TMCRlVvr
    Whe4SYP5TMCRlVvr
    tJa6A4PQGTLTPORP
    bUORfseDZscKTgDG

    • Locate the five (5) tabs at the top of the keyboard that are holding it in place

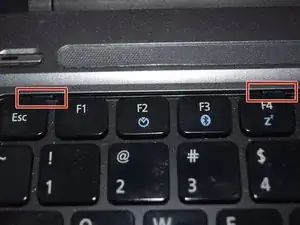

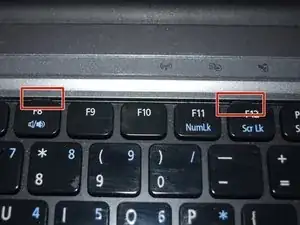

    • The 2nd and 3rd pictures are close ups of the tabs

  2. sjEHYUnRthrd1yKV
    sjEHYUnRthrd1yKV
    OSkGhd6SGnOXmqFp

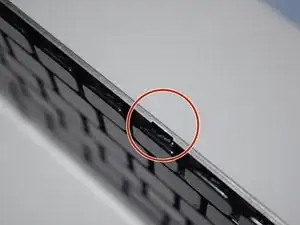

    • The first picture shows the notches in the keyboard that the tabs to into to hold it in place. You cannot see these until the keyboard is removed

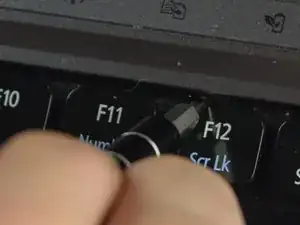

    • Insert the flat part of the Spudger tool into one of the holes in front of the tab

    • Push the tab back so it is no longer holding the keyboard.

    • Repeat this step for all of the tabs

  3. VimbwGRW4LLcfTft
    VimbwGRW4LLcfTft
    5qgcE4XXcGvhwmLN

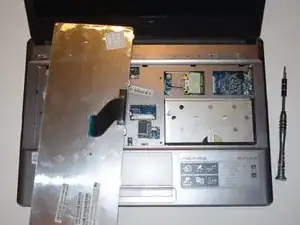

    • Lay the keyboard upside down

    • Remove any tape that is on the connector with tweezers

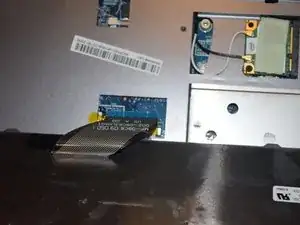

    • Gently remove the connector that is on the ribbon cable from the back of the keyboard

    • Your keyboard is now ready to be replaced with a new one

Abschluss

To reassemble your device, follow these instructions in reverse order.
