Einleitung

After you remove the back cover panel its not too difficult to slide the ram out of the laptop.

  1. WY6QMT1lxhrsmKaA
    • Turn the laptop over.

  2. oyq1LFHbxVZogqMj
    • "Unlock" your battery by moving the switch as shown so that an unlocked lock on a red background is shown.

  3. NAGcW5n3GaDN1cOJ
    • Next move the other switch, while the unlocked symbol is still showing. The battery should pop up, and no longer be flush with the bottom of the laptop.

  4. n6BJ11MHRJvjB4BX
    • Now remove the battery by lifting it out of the laptop by the side closest to the switches.

  5. UpEYISOiAaiuE1oJ
    • You have successfully removed the battery. Congratulations!

  6. 1fFyPbJPSFkL35oM
    • Now, locate the two screws that hold the back cover panel onto the laptop.

  7. FaeZYvgRCGbbGkwM
    • Unscrew both of the screws that are holding the back panel in place with the Philips #00 head.

    • The screws are 3/8" in length and have a 1/4" head.

  8. miknUSUTHeOEnBQl
    miknUSUTHeOEnBQl
    y5wgHVdHa3EyHUOZ
    • Once both screws have been removed use a plastic opening tool to lift the panel up. Starting with the indented notch , and moving left and right from there.

  9. NwKNJfrSo1HXZPdL
    • After the panel has been loosened by the plastic opening tool, take your finger, place it in the gap, and remove the panel from the laptop.

    Hello. Vous avez oublié de mentionner le démontage du disque dur (une vis) et le débranchement des fils des antennes wifi qui ne gênent pas pour vous lors du démontage de la carte mère.

    Pierre Le Fier -

  10. RLTeNkQUBHZBjqRO

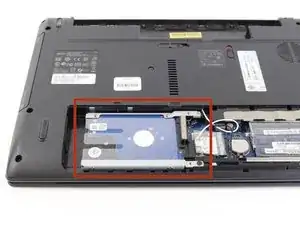

    • Once the cover panel is off, locate the hard drive.

  11. DVLfsWPObPJbPGkC
    DVLfsWPObPJbPGkC
    xUvE424TLZSlA3RI

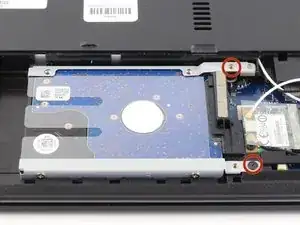

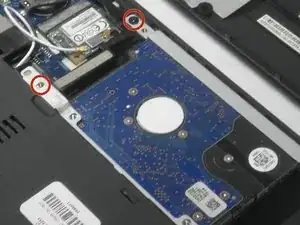

    • Locate the two screws that are holding the hard drive in place.

  12. BeshQSkjNKnYO4jd

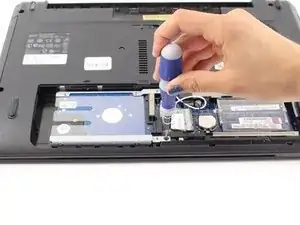

    • Remove the two screws using a Phillips #00 screw driver.

  13. HVCcgFC5WmgqBoVM

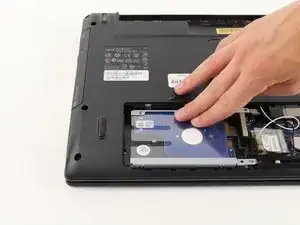

    • Carefully slide the hard drive in the opposite direction of where the screws are located until it dislocates.

  14. ISacDr2ohe14FNiH

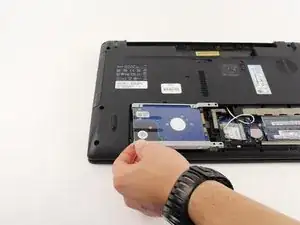

    • Pull the hard drive out of its compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
