Acer Aspire 5334-2581 RAM Replacement

Geschrieben von: gilson teixeira
  • Kommentare: 0
Acer Aspire 5334-2581 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

40 Sekunden

Einleitung

This guide is simple and it will show how to replace RAM on your Acer Aspire 5334-2581. RAM usually helps boost the computer speed and functionality.

  1. mdvFlWZUqQUWXvog

    • Please make sure your device is unplugged . Turn it over slowly, and place it on a flat surface.

  2. T2O2YbSSf4Q6mOGC

    • This latch holds your battery in place, it should always be locked. Make sure to unlock this piece.

    • Do not break this latch, otherwise your battery will not hold in place.

  3. pKsOglZARUHGGWuN

    • Locate the eject latch and push it so the battery can come out.

    • The battery will lift up once you have pushed the latch.

    • You DO NOT need to adjust the latch when replacing the new battery, because it just snaps in place.

  4. iEfgdluPAyQW4YxB

    • Lift the battery up, and it should just come right off. You should see the label with the part number.

  5. Xec62yGROYBxeQKR

    • Remove the phillips screw

    • then take away the cover

  6. 3dtPOeAjnTKkrOPX

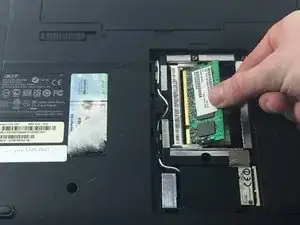

    • Push the marked claws to the side in order to make the RAM free.

    • To remove the RAM just pull it in the shown direction.

    • Take extra care when removing the RAM, you do not want to damage the placeholder for the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
