Acer Aspire 5349-2592 Hard Drive Replacement

Geschrieben von: Abderahmane Naidjate
  • Kommentare: 0
Acer Aspire 5349-2592 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

The process of this guide is pretty simple, but requires patience. This guide will help the user replace the hard drive of the computer.

  1. h5CaLOOJUQRsudgD

    • Turn the laptop over so that the back is facing you.

  2. 3qKH1lxSOJYuHlE6

    • Push the laptop battery release lock.

  3. OsNPMQDycDGB4IVk

    • Now that the Acer-Aspire 5349-2592 laptop battery is unlocked, press the battery release button down.

  4. NIiCmYUxSYFS5Uqg

    • Holding down the laptop battery release button, gently pull the battery away from the laptop.

  5. 1nAPoSZxmU2eJpec

    • Remove all of the screws located on the back of the laptop using your Phillips #0 screwdriver.

  6. X1NxoRJsbIGqufGc

    • Pry open the backplate using the iFixit opening tool and remove the backplate from the device.

  7. RMMCTKRPc5tvHaPo

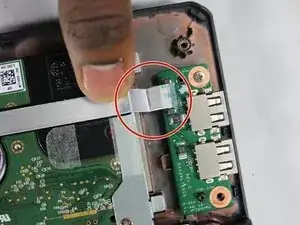

    • Remove the the pin strip.

  8. T4RxjtVPtAMxWt5A

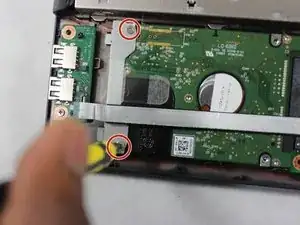

    • Remove the two screws from the caddy using the Phillips #0 screwdriver.

  9. mZuCBLHIPx23jueF

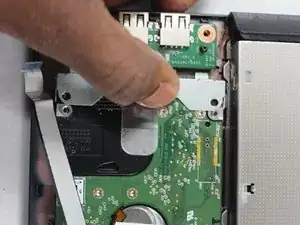

    • Slide out the caddy.

  10. Lj4dH6EWSRorDNTY
    Lj4dH6EWSRorDNTY
    ykNaBIKJP4R3FtJF
    6Ng1SlDLmfM2FqLK

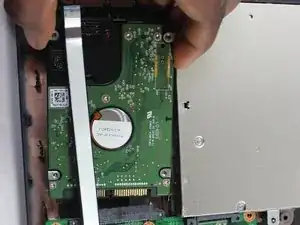

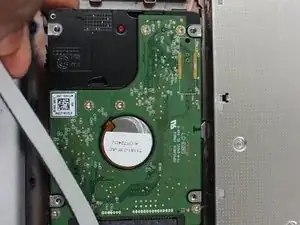

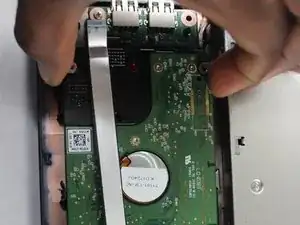

    • Slightly lift up the hard drive and pull it out from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
