Acer Aspire 5517-1127 Disk Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will walk you through how to replace a disk drive on your Acer Aspire 5517-1127 device. If your device is not recognizing or reading disks when inside the disk drive, this guide may be able to assist you.

  1. ubfUTIuvJtbl5Iwa
    ubfUTIuvJtbl5Iwa
    eoFllDaSIMM2CSZw

    • Orient the laptop so that its upside down facing away from you.

    • The screw is at the bottom of the RAM panel.

  2. wOjX5vAQkSPNieYo
    wOjX5vAQkSPNieYo
    P6offDVWiQoEvBvH

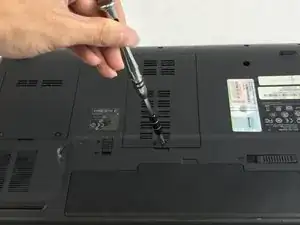

    • Using a Phillips screwdriver (PH1), unscrew the screw from the panel.

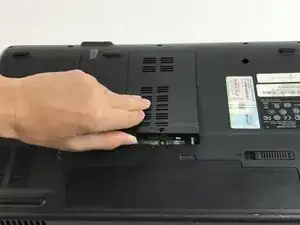

    • Pull the panel away from the device as shown.

  3. oo4dM2k1Zv2oxRUh
    oo4dM2k1Zv2oxRUh
    TgqbVODKDox1FmkC
    WM3AMFnmWB3OZpfn

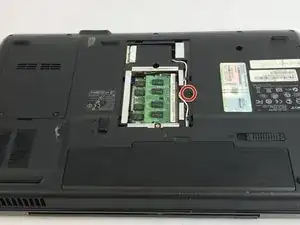

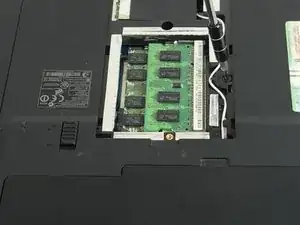

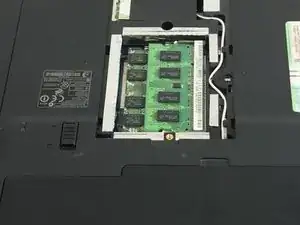

    • The screw to the right of the inner RAM casing is shown.

    • Using the same Phillips screwdriver (PH1), unscrew the screw.

  4. p1GAhBKwVHdaCDFF
    p1GAhBKwVHdaCDFF
    3o4hFNuCAGYecGLA
    PaNxWKZCXDW5Mqua

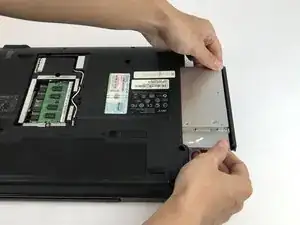

    • Gently push the disk drive away from the device as demonstrated.

    • The disk drive will come out with the screw removed from the RAM casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
