Acer Aspire 5517-1127 Hard Drive Replacement

Geschrieben von: Christopher Newkirk
  • Kommentare: 0
Acer Aspire 5517-1127 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide will show you how to replace the hard drive on your Acer Aspire 5517-1127 laptop. If your HDD is broken or needs upgrading, this will help you.

  1. wTTlqxUW2bkHuuuc

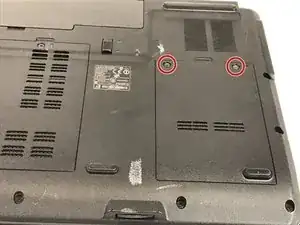

    • Orient the laptop so that it is upside down facing away from you. The hard drive panel is on the right.

    • The two screws are at the top of the panel.

  2. FKbf3hCSAYqfaulJ
    FKbf3hCSAYqfaulJ
    EHIxoHfE2EiEgje3

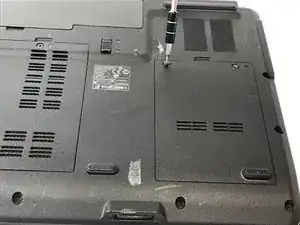

    • Using a Phillips screwdriver (PH1), unscrew each screw from the panel.

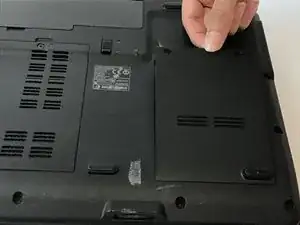

    • Pull the panel away from the device as shown.

  3. nD3f4bHpUfotcxqd
    nD3f4bHpUfotcxqd
    RLnFJrMy2KudxnVs

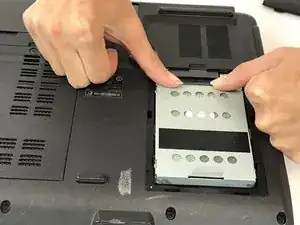

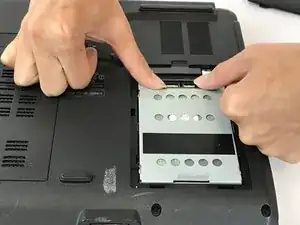

    • Push the hard drive out of its housing as shown.

  4. VqpWpCJaRjTLGlNY

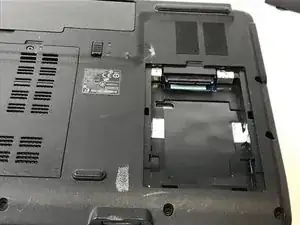

    • The hard drive is now removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
