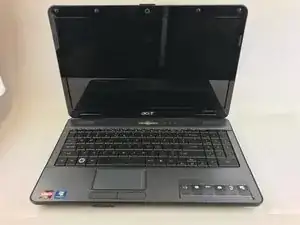

This guide will show you how to replace the keyboard on your Acer Aspire 5517-1127.
Werkzeuge
-
-

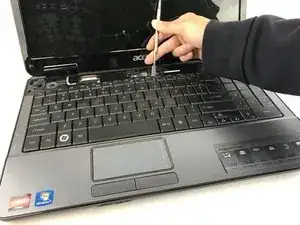

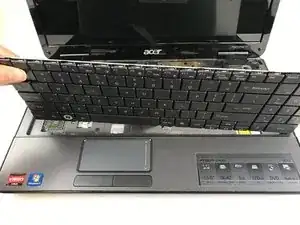

With the top panel remove, use the spudger to lift the keyboard out of the device as shown.
-
-
-

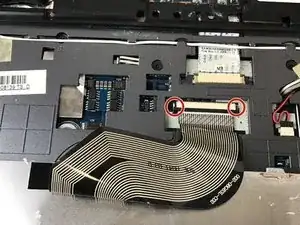

The keyboard ribbon is shown after removing the keyboard. There are two tabs holding the ribbon in place as shown.
-

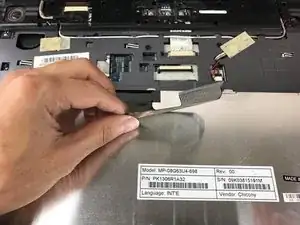

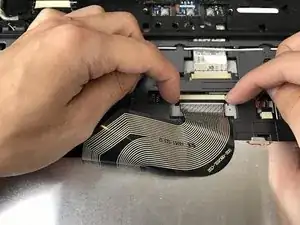

Using your fingers, pull the tabs towards you to release the ribbon from its casing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
