Einleitung

“Compact Disk”, CD Drive, is an external accessible memory component. Data is stored on the CD and is usually read by the drive. Data may also be written with the appropriate “read-write”, CD-RW, drive. The CD-ROM may be replaced by the added improvement of a “Digital Video Disk” drive, DVD will allow you to stream video. This guide will demonstrate how to replace the Acer Aspire 5534-1096 CD drive.

  1. bqsQW2iSEELcVeDh
    • Unscrew the two 4.8mm Phillips #00 screws.

    • These two screws will not completely be unfastened because they are technically bolts.

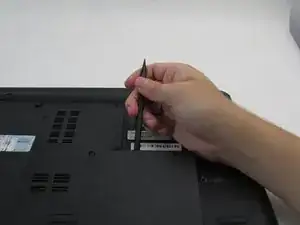

  2. etcaO1TZYFXnSufW
    • Use a spudger to pry open the access panel.

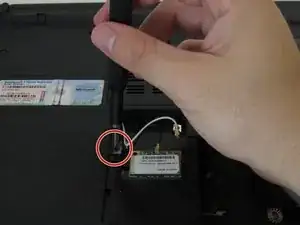

  3. TTZ6ZjUdIaTNobcN
    • Remove the single 1mm Phillips #00 screw.

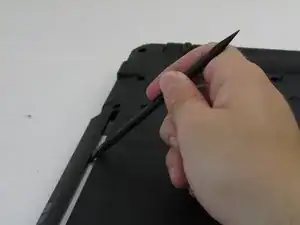

  4. yNAOiUqcgRGMaXIh
    yNAOiUqcgRGMaXIh
    TEsUs5lJHEn4lIME
    SmfjJRYiX6EQNVHG

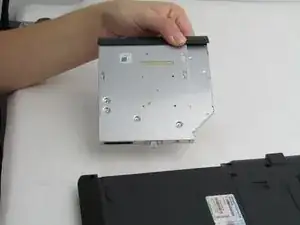

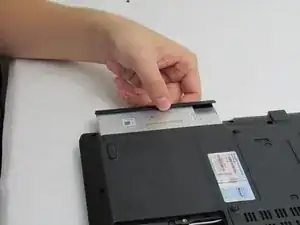

    • Use the spudger to release the CD drive by placing it between the lip of the drive and the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
