Einleitung

This guide will show you how to replace the keyboard in an Acer Aspire 5534-1096. A keyboard is an interface used to give commands to a computer. The effectiveness of a keyboard decreases over time. The keys are subjected to multiple keystrokes which weaken the mechanical and electrical connections underneath the keys.

  1. OAkhS1EHUCOYUSgQ
    OAkhS1EHUCOYUSgQ
    1EyM5FqIyFVwS5kL

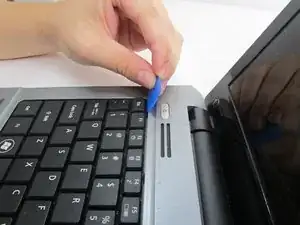

    • Insert an opening pick between the top left corner of the keyboard and the laptop body.

  2. 65ax22TYr433gf3y
    65ax22TYr433gf3y
    iNcJTfRIrFNFGvji
    OTqvRs3elGBa5XxB

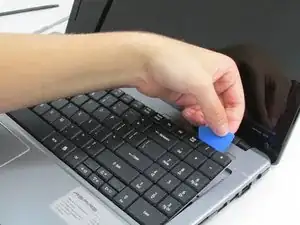

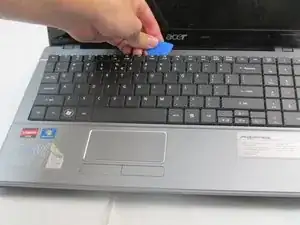

    • Slide the pick towards the other end of the keyboard to pop it out.

  3. QT6JrvdqONJ64YnA
    QT6JrvdqONJ64YnA
    LWjIVbUsQ5UgDSKS

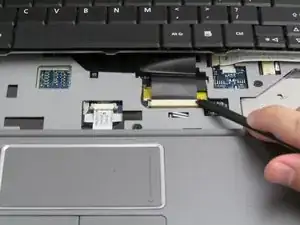

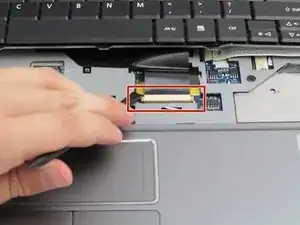

    • Use the spudger to open the two latches holding the ribbon cable in place.

  4. JUDusANMfmyvAdZH
    JUDusANMfmyvAdZH
    l4ZLIBjonFGRIN1U

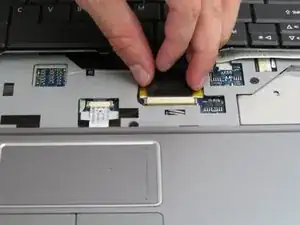

    • Remove the ribbon cable by sliding it back.

  5. sZaBEdigaN4xak2a

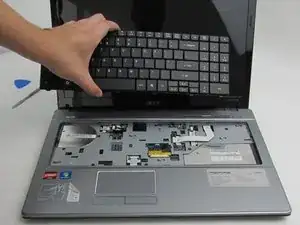

    • Remove the keyboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
