Acer Aspire 5534-1146 RAM Replacement

Geschrieben von: Trysten buckley
  • Kommentare: 0
Acer Aspire 5534-1146 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Replacing the RAM is a simple repair that takes 5 minutes. Make sure laptop is off and unplugged.

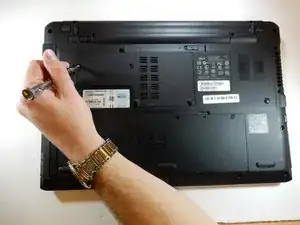

  1. VNo2tIFbgghVMwBS

    • Flip laptop over to show the bottom and lay flat.

    • Use the Phillips #0 screwdriver to remove the the two .8 centimeter screws from back plate.

  2. fdCgpatX4VoZeoEK

    • Use the blue colored spudger to loosen plate.

    • Lift plate out of place.

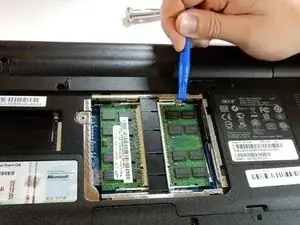

  3. NvLfPCnerfkHQyir
    NvLfPCnerfkHQyir

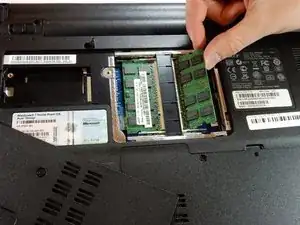

    QeDDyUO32lOqujCC

    • Push down the marked bracket with an opening tool or plastic spudger.

    • Move the Ram at a 45 degree angle and pull out of place.

    • Do not bend the RAM stick brackets when removing the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
