Acer Aspire 5536 Display Replacement

Geschrieben von: TechStem
  • Kommentare: 2
Acer Aspire 5536 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

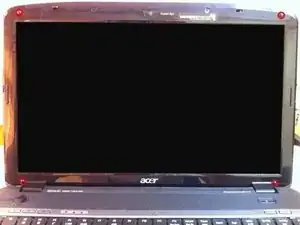

  1. f6pRVNTL1kwwUt5A

    • Remove the 4 rubber supports from the screen. Then remove the screws underneath.

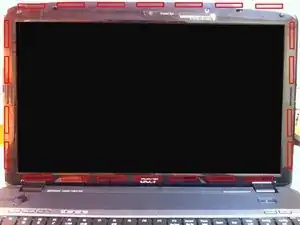

  2. FOUV65KE16bciY3S
    FOUV65KE16bciY3S
    JcGWH5eeerNxPVlB

    • With a spudger, release the clips that hold the plastic frame to the back cover.

    • Be careful while handling the bottom part, specially with the hinges, as there are cables inside.

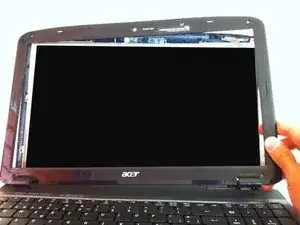

  3. 1liPxFBaZjYXVtdN

    • When all the clips are out, the entire plastic frame should come out easily.

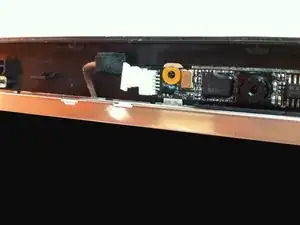

  4. QPLdLTBFDLCVLkZ5

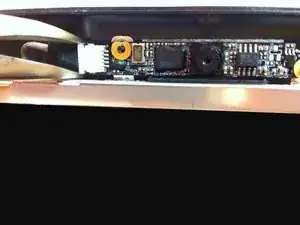

    QPLdLTBFDLCVLkZ5
    qqvZO2XAGrVyLlSB

    • Carefully disconnect the camera cable.

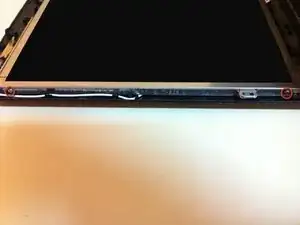

  5. XNcnJokKKNvKCXJA
    XNcnJokKKNvKCXJA
    WfuijP5G1kXGPC2W

    • Remove the 4 screws located in the sides of the LCD screen.

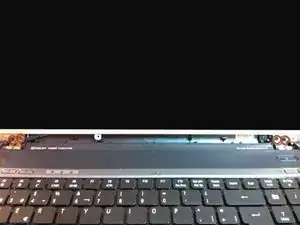

  6. jnvPQjsZGJAL6yQl

    • Remove the other 4 screws that secure the metal LCD frame to the hinges.

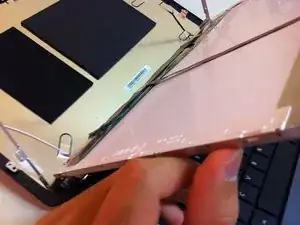

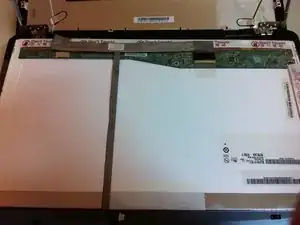

  7. IEpqRNlvPBZaljnK
    IEpqRNlvPBZaljnK
    XyuYIxyZZEI21OFr
    evg2UahFKTEnDx6l

    • Take the LCD screen out of the metal frame and flip it towards the keyboard.

  8. ecRSBTXGEQO2XOd4

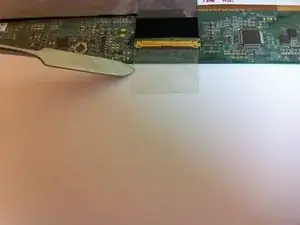

    ecRSBTXGEQO2XOd4
    CykcE2U4KjGvmPki

    • Remove the tape that holds the display cable.

    • Be careful not to take the entire tape away, as this may cause severe damage to the cable.

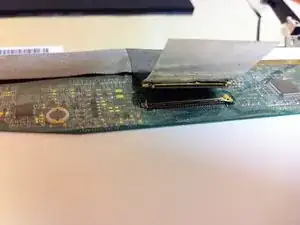

  9. rDKe5qtNTsQH6OGB

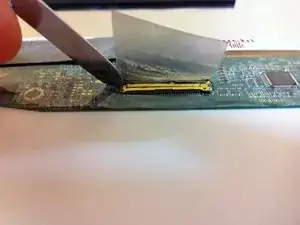

    rDKe5qtNTsQH6OGB
    PxFEnVgiyQXRWNAw

    • Carefully disconnect the cable with a spuger.

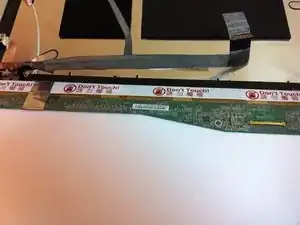

  10. N6OAbEiACcSG64lU
    N6OAbEiACcSG64lU

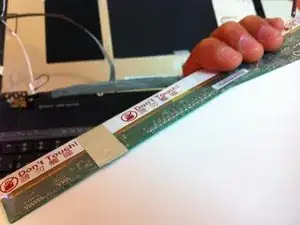

    vE1dj1LUEfnRVSmQ

    • Unstick the cables from the back of the LCD screen.

    • The LCD should be completely free, so just take it out and install a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
