This guide is on how to replace the random access memory in an Acer Aspire from the 5552 series.

  1. IBsnG2m2wQPyjTgo
    • Remove the following Phillips 0 screws.

  2. Oln5tXT46IlBcGJf
    Oln5tXT46IlBcGJf
    ACELHvMgZXNpjoDQ
    STbvFQArGwkWfnoe

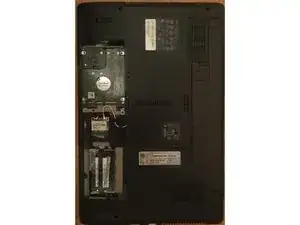

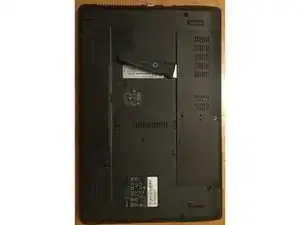

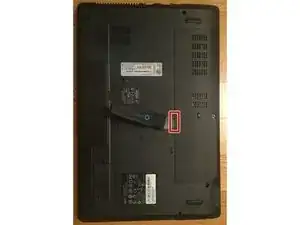

    • Using an opening device; insert it into the notch, and slide the device along all sides to pop the plate out.

  3. Rwuy13rrCkvjfItm
    Rwuy13rrCkvjfItm
    2uXKu3eApoQfGqS1

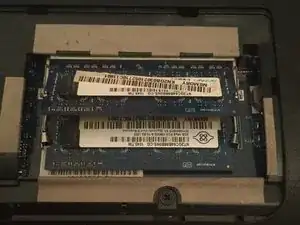

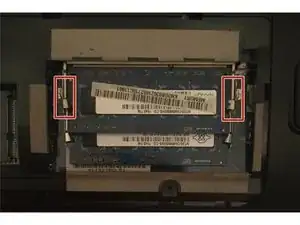

    • Gently pull apart on these metal tabs and the RAM will pop up. This can then be safely removed by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
