Acer Aspire 5740-5780 Keyboard Replacement

Geschrieben von: Gian Farrell
  • Kommentare: 0
Acer Aspire 5740-5780 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

3 - 5 Minuten

Einleitung

Use this guide to remove the keyboard from your device. You'll need a metal spudger and some prying power to complete the guide.

  1. qpHRsbPBZhIEHx5A

    • These latches must be released in order for the keyboard to be removed.

  2. UFXAvgBWBaH6Zaso
    UFXAvgBWBaH6Zaso
    PxGHBqVRwnR3XhAw

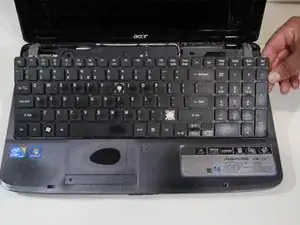

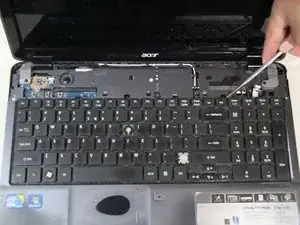

    • Using a spudger, pry the keyboard from the PC, gently.

    • Lift the keyboard and flip it over, so that it rests on its keys.

  3. 1dUSLn3CN3qydBHR
    1dUSLn3CN3qydBHR
    VD5DodeSyHErcQ3x

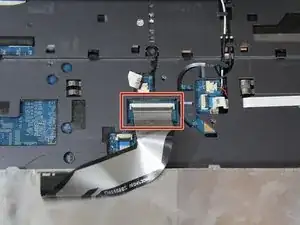

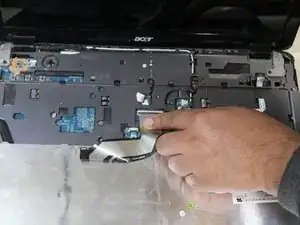

    • Using your hands, open the latch holding the wire in place, and remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
