Einleitung

  1. kqvttMQpDApi4EEH
    kqvttMQpDApi4EEH
    QxCaOGRvNt2aqiGb
    • Use spudger to gently pry off open middle cover.

    • Then flip the middle cover over onto the keyboard.

  2. pLDaYIyFidmErtvZ
    • Use tweezers to detach the cable from the volume button board on the middle cover.

  3. ZSmmZcnyupkMRwUn
    • Finally remove the middle cover completely from the computer.

  4. qpHRsbPBZhIEHx5A
    • These latches must be released in order for the keyboard to be removed.

  5. UFXAvgBWBaH6Zaso
    UFXAvgBWBaH6Zaso
    PxGHBqVRwnR3XhAw
    • Using a spudger, pry the keyboard from the PC, gently.

    • Lift the keyboard and flip it over, so that it rests on its keys.

  6. 1dUSLn3CN3qydBHR
    1dUSLn3CN3qydBHR
    VD5DodeSyHErcQ3x
    • Using your hands, open the latch holding the wire in place, and remove the keyboard.

  7. ZpShRmccjUYxGSp5
    ZpShRmccjUYxGSp5
    H4hqVtvMFYjKcO4f
    • Turn the laptop off and remove the power cord.

  8. CxmpT2LNZJLQwncE
    CxmpT2LNZJLQwncE
    2V2vnfGXcRVHlx3j
    • Press in the SD Card or the SD Card Dummy if no SD Card is there. Remove card when it pops out.

  9. ZDfe4MDGPUnBDr2L
    • Flip the laptop over on its face, so that the back is showing.

  10. 1QCqo2PfGavcHm4v
    • Put grounding strap on one of your wrists and attach the other end to a large metal object (recommended method).

    • If you don't have a grounding strap an alternative approach is to touch a metal object that is either large or connected to the earth. Then avoid doing things that would accumulate static electricity on your body.

    • Touching the internals of your device while you aren't grounded could destroy your laptop.

  11. yiaftX3bXLpWKLcc
    yiaftX3bXLpWKLcc
    oSN4vWDekYSPOnyr
    • Unlock the battery by flipping a switch near the release latch.

  12. vnnZnGNpmbGfUYIh
    • Slide the release latch to the left to release the battery from the PC.

  13. 2CsLFr1sDPFiW2pQ
    2CsLFr1sDPFiW2pQ
    wAKmnBxDfuBEsQU5
    • Use your hands to pry the battery free of the computer.

  14. b5ZAEZckYCgZTPKR
    b5ZAEZckYCgZTPKR
    XZryXbhRuyOYfKay
    • Unscrew the 2 captive screws and 3 M2.5 x L8 screws holding back cover in place.

  15. dqnleeFElNNNchPw
    dqnleeFElNNNchPw
    xDdPIqBwLBhsuLqr
    • Use spudger to pry open the back panel.

    • Then lift panel off of the computer.

  16. ygUscQccUBY2SBg3
    • Remove the one M2 x L4 screw that secures the hard drive in place.

    • Screw not shown in picture.

  17. hL2eKpNFKuZGaq55
    • Using an opening tool or your hands, slide the hard drive out of its connector.

  18. MCFkmERtiAORhRhI
    • Lift the hard drive out of the computer.

  19. OPpRKOFJ3L1FZSNu
    • Disconnect the black and white antenna cables from the module.

    • Cables not shown.

  20. BxP4nFHxKJ4mgqXu
    BxP4nFHxKJ4mgqXu
    tY2eQxRc5PXkdCMU

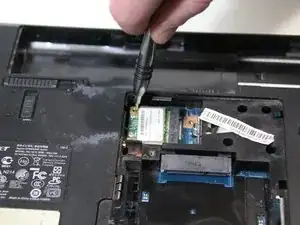

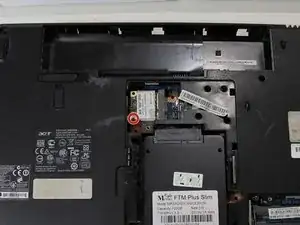

    • Remove one M2 x L4 screw, which is securing the WLAN Module.

  21. KewO1WiGFZXNIwXT

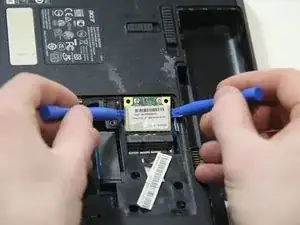

    • Carefully remove the module from the system, using plastic opening tools.

  22. SKyjRAj3ISXqRwGt
    SKyjRAj3ISXqRwGt
    oGqmIFFrUYaOZLdb
    FBmSZb4TF2g2HXvB

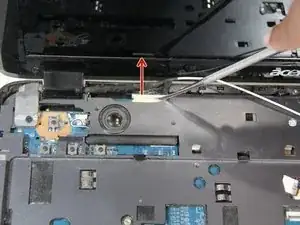

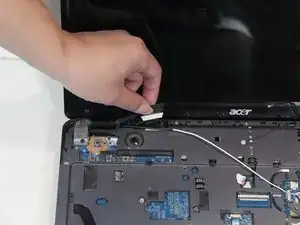

    • Retrieve the WLAN antenna wire from underneath the keyboard.

    • Detach the LCD cable from the main board.

  23. LthkLNdLKLUcoJbr
    LthkLNdLKLUcoJbr
    iiVVyVGbDEZX2asB

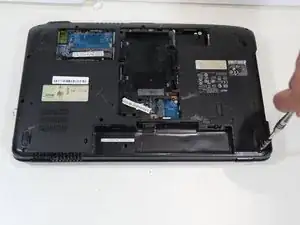

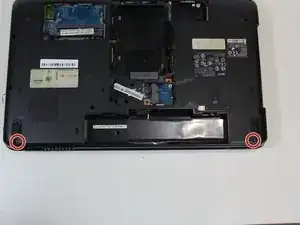

    • Remove 2 M2.5 x L8 screws, using your Philips Head.

  24. orcWhlHvTuBDlM6b

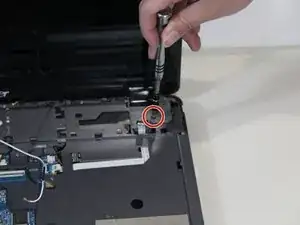

    • Remove 2 M2.5 x L10 from the front side of the PC.

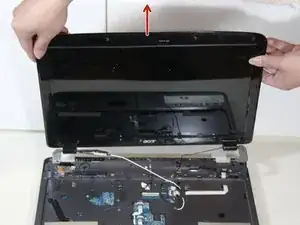

  25. dXCsmGClI5PsCEG2
    • Lift the screen away from the Main board of the PC.

Abschluss

To reassemble your device, follow these instructions in reverse order.
