Acer Aspire 5740-5780 Optical Drive Replacement

Geschrieben von: Gian Farrell
  • Kommentare: 0
Acer Aspire 5740-5780 Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide shows how to remove the Optical Drive for the Acer Aspire 5740-5780.

  1. b5ZAEZckYCgZTPKR
    b5ZAEZckYCgZTPKR
    XZryXbhRuyOYfKay

    • Unscrew the 2 captive screws and 3 M2.5 x L8 screws holding back cover in place.

  2. dqnleeFElNNNchPw
    dqnleeFElNNNchPw
    xDdPIqBwLBhsuLqr

    • Use spudger to pry open the back panel.

    • Then lift panel off of the computer.

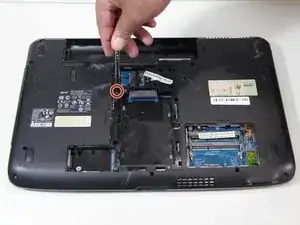

  3. mCTBxwuqFiNUvwBE

    • Remove 1 M2 x L4 screw holding the drive in place with a screwdriver.

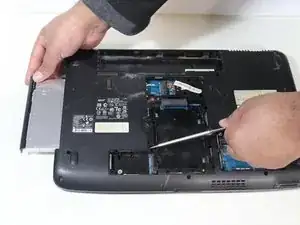

  4. qUmr6osLeE3eGveh

    • Using your hand, slowly remove the Drive from the PC.

Abschluss

To reassemble your device, follow these instructions in reverse order.
