Acer Aspire 5740-5780 RAM Replacement

Geschrieben von: Gian Farrell
  • Kommentare: 0
Acer Aspire 5740-5780 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

This guide will outline the removal and replacement of the RAM in an Acer Aspire 5740-5780 laptop. Replacement of RAM might be necessary if you are in need of more storage space on your laptop, or if it is running out of memory. Replacing the RAM in your laptop might also allow for your laptop to run faster, but it should be noted that this isn’t a permanent fix if your laptop is having performance issues.

  1. ZpShRmccjUYxGSp5
    ZpShRmccjUYxGSp5
    H4hqVtvMFYjKcO4f

    • Turn the laptop off and remove the power cord.

  2. CxmpT2LNZJLQwncE
    CxmpT2LNZJLQwncE
    2V2vnfGXcRVHlx3j

    • Press in the SD Card or the SD Card Dummy if no SD Card is there. Remove card when it pops out.

  3. ZDfe4MDGPUnBDr2L

    • Flip the laptop over on its face, so that the back is showing.

  4. 1QCqo2PfGavcHm4v

    • Put grounding strap on one of your wrists and attach the other end to a large metal object (recommended method).

    • If you don't have a grounding strap an alternative approach is to touch a metal object that is either large or connected to the earth. Then avoid doing things that would accumulate static electricity on your body.

    • Touching the internals of your device while you aren't grounded could destroy your laptop.

  5. yiaftX3bXLpWKLcc
    yiaftX3bXLpWKLcc
    oSN4vWDekYSPOnyr

    • Unlock the battery by flipping a switch near the release latch.

  6. vnnZnGNpmbGfUYIh

    • Slide the release latch to the left to release the battery from the PC.

  7. 2CsLFr1sDPFiW2pQ
    2CsLFr1sDPFiW2pQ
    wAKmnBxDfuBEsQU5

    • Use your hands to pry the battery free of the computer.

  8. tV3xTKNXkgSJKIeV

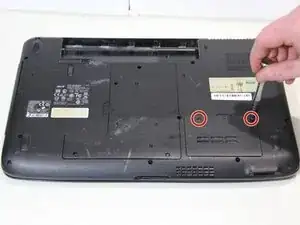

    • Loosen the captive screw and remove the single M2.5 x L8 screw from the back panel using a Phillips #0 screwdriver.

  9. EyuC5UtsyjHEGAgL

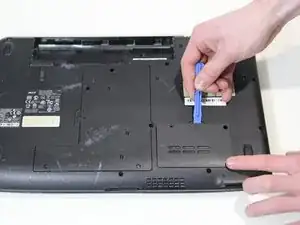

    • Gently pry off the panel with an opening tool. This will reveal the RAM.

  10. YgblREOJnlKBQRuL
    YgblREOJnlKBQRuL
    k4vMPwIpLRPkkTu1

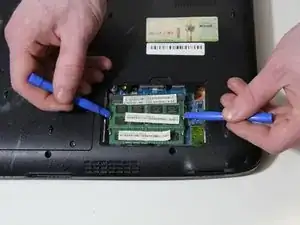

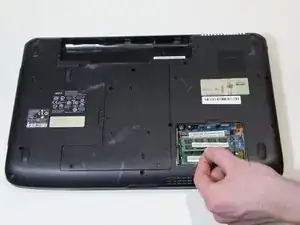

    • Use the opening tool to assist in carefully removing the RAM from the PC. Next lift the RAM up slowly and pull it out with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
