Acer Aspire 5740-6378 Hard Drive Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

The hard drive (or hard disk drive) is the primary memory device of the Acer Aspire 5740-6378. The hard drive permanently stores files and programs, and allows you to retrieve them. Your hard drive is crucial to the operation of the device. Without it, the device would not be able to run the operating system, or any programs. It is highly suggested that you remove the battery before performing this replacement.

  1. ZDpBqMmi4ZQNFCk5

    • Slide the locking switch into the unlocked position to ready the battery for removal.

  2. a1CUe1ikI3BrqHKc

    • Slide the release latch until the battery pops out.

  3. moMlXZvuRBMrDDfM

    • Remove the battery now that it's been unsecured.

  4. BT3OrgtjDEC6CZEn

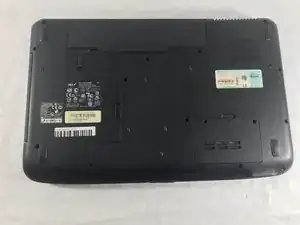

    • Flip over the device so the back is facing upward.

  5. gdwVJDTUB23Dr24n
    gdwVJDTUB23Dr24n
    DqyVCeGxKHVpcNao

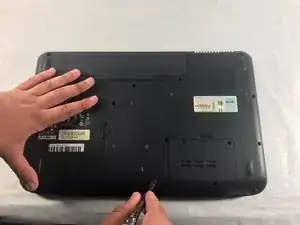

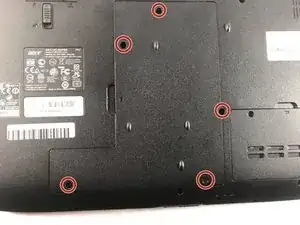

    • Remove the five 8.7mm Phillips #0 screws securing the back panel.

  6. uN3vPxrCjqAiPJ3p
    uN3vPxrCjqAiPJ3p
    4EguyOlIeMKIPEWn

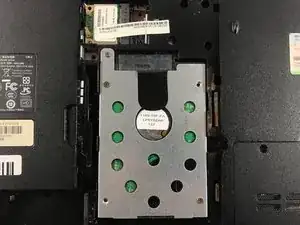

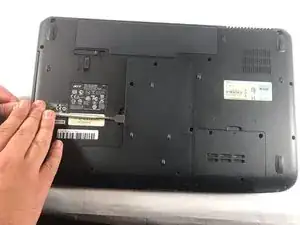

    • Remove the back panel using a spudger or other similar tool to lever it open to reveal the hard drive and other internal components.

  7. sYobbJvVhqZwqFJQ

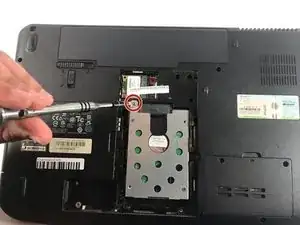

    • Remove the single 3mm Phillips #0 screw that is holding the hard drive in place.

  8. hMZo3SKfkGmAcJlR
    hMZo3SKfkGmAcJlR
    Fhbef5F5sQCnROJg
    RDETjN2oePPkASBN

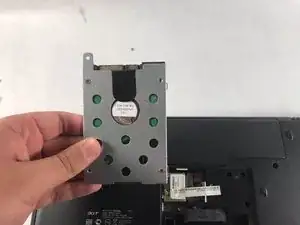

    • Slide the hard drive away from the connector, then lift it to remove the drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
