Acer Aspire 5740-6378 WiFi Card Replacement

Geschrieben von: Ian Rodriguez
  • Kommentare: 0
Acer Aspire 5740-6378 WiFi Card Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

The WiFi card allows for the user to have internet access. If the WiFi card is broken, the Acer Aspire 5740-6378 will still work, but without the capabilities of using the internet. It is highly suggested that you remove the battery before performing this replacement.

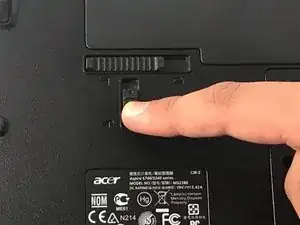

  1. ZDpBqMmi4ZQNFCk5

    • Slide the locking switch into the unlocked position to ready the battery for removal.

  2. a1CUe1ikI3BrqHKc

    • Slide the release latch until the battery pops out.

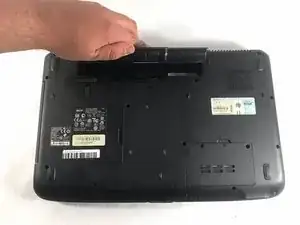

  3. moMlXZvuRBMrDDfM

    • Remove the battery now that it's been unsecured.

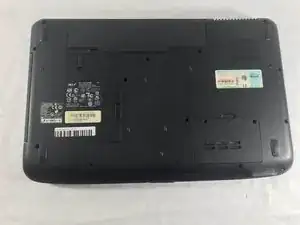

  4. YATgfuqnXTFqYRQl

    • Flip over the device so the back is facing upward.

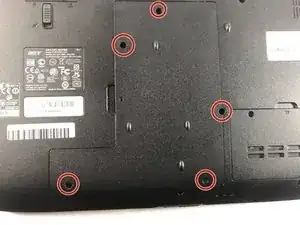

  5. OQUWWoTAHg4J5YcC
    OQUWWoTAHg4J5YcC

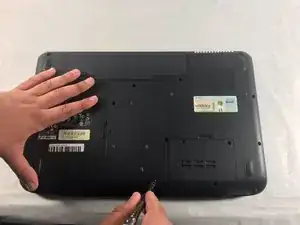

    xew1G5mFXkliiFhN

    • Remove the five 8.7mm Phillips #0 screws securing the back panel.

  6. bIKQGSKf6x2jsoy5
    bIKQGSKf6x2jsoy5

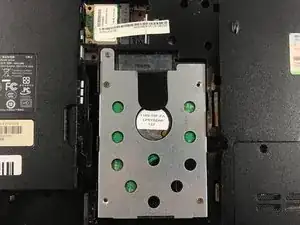

    SmHvep3VT6SyAEGd

    • Use the black spudger to pry open the back panel.

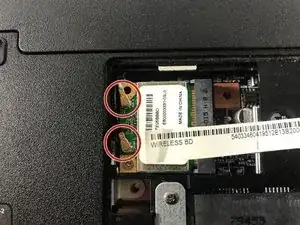

  7. evwL4HafXa3YfRNK
    evwL4HafXa3YfRNK

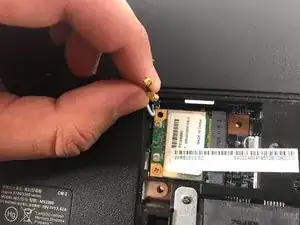

    epAQhGrXxPTYmnlE

    • The WiFi card should be directly above the hard drive. Detach the two coaxial connectors attached to the WiFi card by pulling on them.

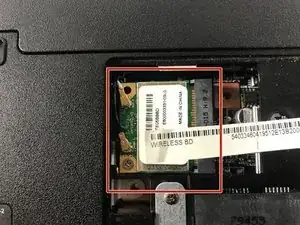

  8. oZedKmHqZZrbDABZ

    • Remove the two 3mm Phillips #0 screws securing the WiFi card.

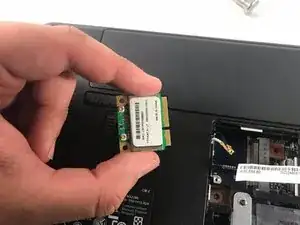

  9. ffpuvqTfqy1oPwNT

    • Remove the WiFi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
