Einleitung
Upgrade your RAM for a noticeable increase in speed.
Werkzeuge
-
-
Move the battery catch to the "unlocked" position.
-
Pull back the second spring-loaded battery catch until the battery pops up.
-
Remove the battery.
-
-
-

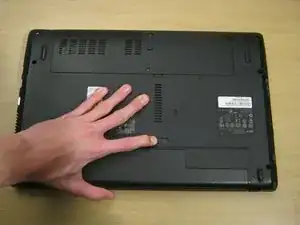

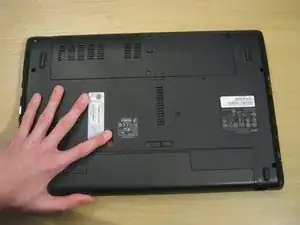

Turn the notebook around to face you.
-

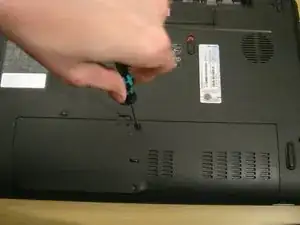

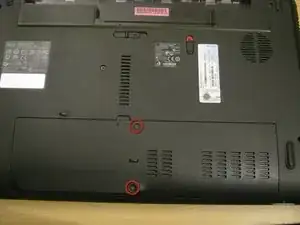

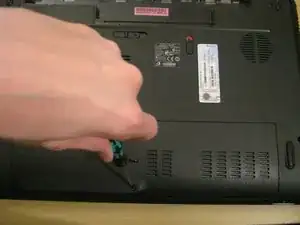

There are two Phillips #00 screws securing the cover panel to the rest of the notebook. Remove these screws.
-
-
-

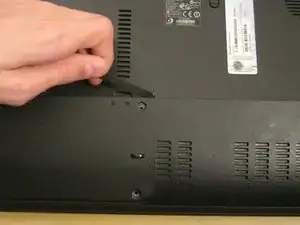

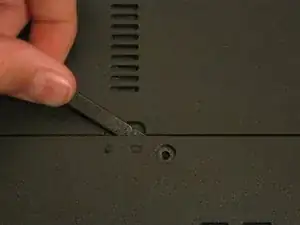

Use a spudger to release the panel from the plastic retaining clips keeping it in place.
-

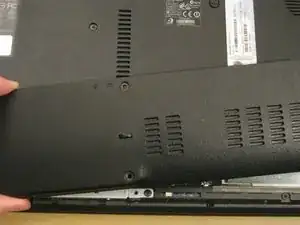

Remove the panel and set it aside.
-
-
-

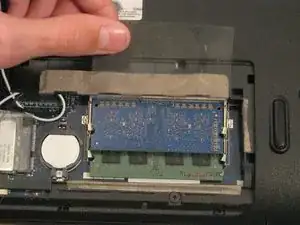

The RAM is protected by a transparent cellophane cover.
-
Lift this cover away from the RAM. It will not come free from the RAM.
-
-
-

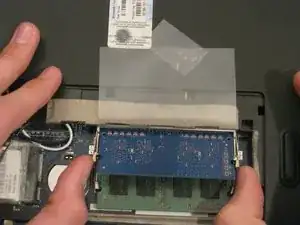

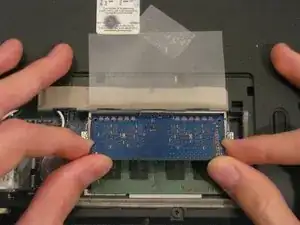

Pull back the retaining clips either side of the RAM.
-

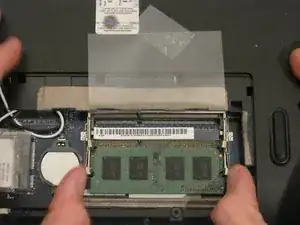

It will spring up, ready to be removed.
-
-
-

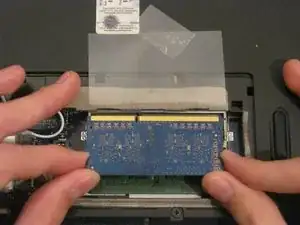

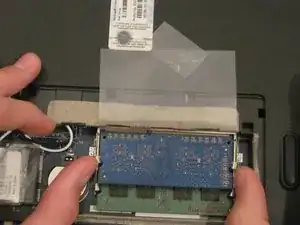

Hold on to opposite edges of the RAM chip and gently pull it diagonally upwards to remove it from the computer.
-
Repeat steps 5 and 6 for the second RAM chip if necessary.
-
-
-
When reinserting RAM, push it diagonally downwards until almost all of the gold connector strip is inside the socket.
-

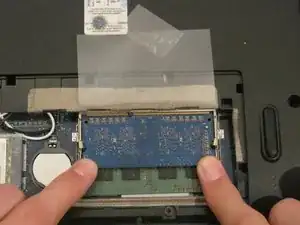

Push gently down on the RAM until the retaining clips click back over it.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
note to add: it only supports 8gb (2x4gb) max
Hi, not sure if this is the right place to post this troubleshooting request.
I’ve re-seated the original 4GB memory and added a further 4GB into the additional slot on my acer Aspire 5742 laptop. When I turn it on, the machine shows the initial ACER splash screen with the ‘Press <F2> to enter Setup.’ message in the bottom left-hand corner and the hard drive briefly whirls before the laptop powers down. It then powers back up and continually loops this cycle until I remove the power sources (mains and battery). When I press <F2>, I get 4 (four) short, quick beeps - which I think is telling me to re-seat the RAM. I have re-seated the RAM a handful of times without any progress in the reboot.
Any pointers please as to where I am going wrong or what to try next?
