Acer Aspire 5742 Series Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

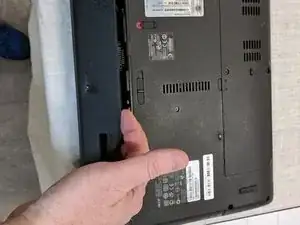

  1. M2VtmcrESKqwjhSY
    M2VtmcrESKqwjhSY
    ErSZsZW2mb6vwPGO

    • Place laptop upside down and push battery lock slider to the left to unlock. Lift battery out.

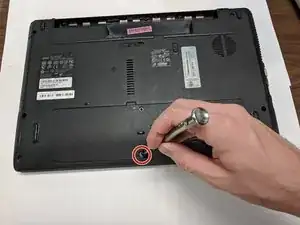

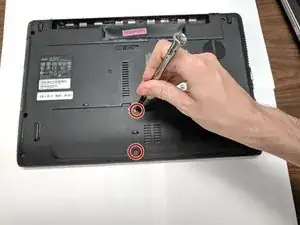

  2. g4qudpO3pbaiId4f
    g4qudpO3pbaiId4f
    bgPRYoQNqisLMRRb
    L2GXKmJNC6VVJyPA

    • Remove two screws to take the cover off of the bottom of the laptop.

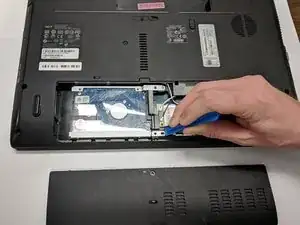

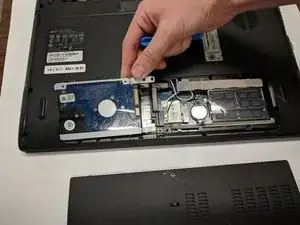

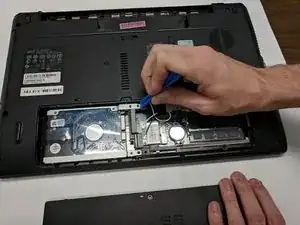

  3. YUZNxhZsvRPMAV3V
    YUZNxhZsvRPMAV3V
    rD4QX2IIENrNAB62
    rEHravDIxuqkdiqm

    • With a plastic opening tool slide the drive over and remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
