Acer Aspire 5742G Memory stick Replacement

Geschrieben von: Petter Berget
  • Kommentare: 0
Acer Aspire 5742G Memory stick Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Just as simple as it gets! to work on a laptop, well there you have the Acer Aspire 5742G and the easiest job to change memory sticks!

click here for video

  1. I1gdvWDRGKRTGsn6

    • Make sure your computer is off and remove the battery with the security tabs shown in the picture

  2. bCjeAoa2owgpwNOQ

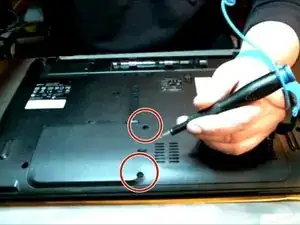

    • Remove these philips screws, only two :)

  3. TSWBZmsO3qtoTSv6
    TSWBZmsO3qtoTSv6
    vVkQmQXIawsFnmaJ

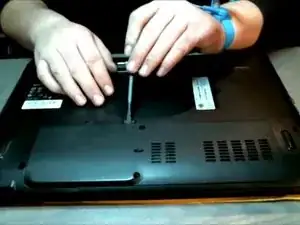

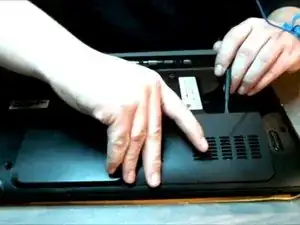

    • Then from the dented tab, either your finger, card or spudger will work, and start prying GENTLY!

    • Easily work your way around.

    • WARNING! PLASTIC TABS! be careful not to break them!

  4. 2i6HWHNYXPaThZlZ

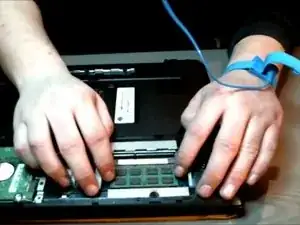

    • Now you've removed the cover, you will get access to your Antenna, HDD, and RAM

    • Please remove both tabs with the memory stick at the same time

  5. kSpj3WERK3nUOlpa

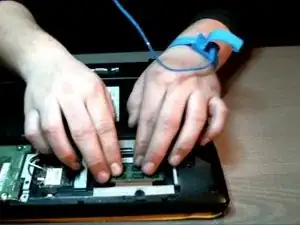

    • Now put the new memory stick in!

    • When it is in, then gently push it downwards to lock it in place!

    • Be aware you have to line up the stick with a pin in the socket!!

Abschluss

To reassemble your device, follow these instructions in reverse order.
