Einleitung

If your Acer Aspire (model 5750Z-4566 ) is displaying the error message; Smart failure predicted on the hard drive. Use this guide to replace the hard drive (also known as a hard disk).

The goal of this guide is to show the steps involved in the replacement of an Acer Aspire 5750Z-4566 hard drive. A hard drive failure may occur in the course of a normal operation or due to an external factor such as exposure to water or environmental contamination, which can lead to a crash.

This guide is necessary because hard drive failure often leads to data loss. It is essential to replace the hard drive when the computer experiences signs of a hard drive failure. It enables one the opportunity to back up the data stored on it and replace it before it completely wears out. The only tool required will be a Philips #0 screwdriver.

  1. mE5DQIPhFtHQvXFk

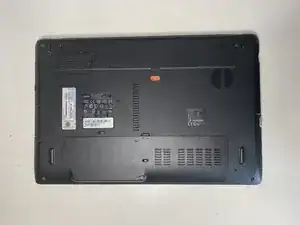

    • Power off your laptop before beginning disassembly.

    • Flip the laptop over.

  2. GldUnMCi6DIPTEQH

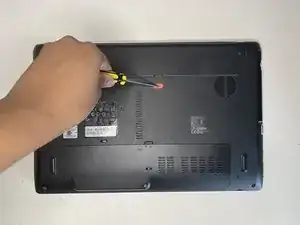

    • Place a screwdriver or a pen in the orange tab, then slide it to the right.

  3. mCRVQMTNI5KjRPMw
    mCRVQMTNI5KjRPMw
    PviivOWtSovhjRle

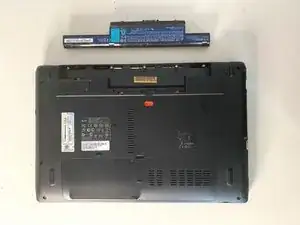

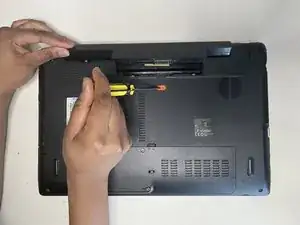

    • Slide the battery out and remove it.

  4. eh6MtRw6NGN3vwWB

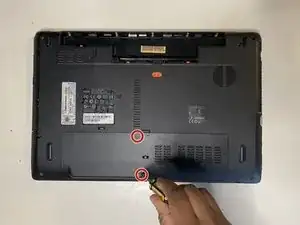

    • Remove the two M2.5X8 screws using the Phillips #0 screwdriver.

  5. ydXA4mddAIjcYV3s
    ydXA4mddAIjcYV3s
    LRA6VJGoKEJBHArf

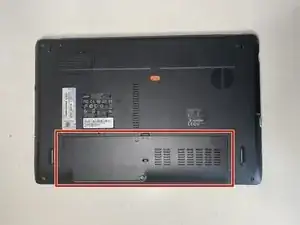

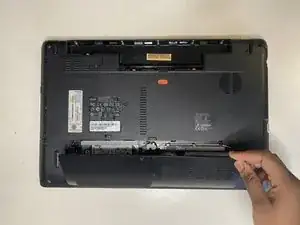

    • Remove the cover to access the hard drive.

  6. G2ytR1AfV3WXxYIu
    G2ytR1AfV3WXxYIu
    4wDfwNJdeAbLTHJL
    • Pull the tab and lift up to remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
