Acer Aspire 6530-6522 Optical Disk Drive (CD/DVD) Replacement

Geschrieben von: Patrick McKenna
  • Kommentare: 0
Acer Aspire 6530-6522 Optical Disk Drive (CD/DVD) Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

This guide will show you ho to remove the optical disk drive, usually a CD or DVD reader and/or writer. You might need to do this if it is malfunctioning and needs to be replace, or if you are upgrading to a better one.

  1. CN5hVXbfL1ZDxGOl
    CN5hVXbfL1ZDxGOl
    cNcaeqX6XJPEuZBp

    • Make sure the device is unplugged and completely powered down.

    • Turn the device over.

  2. Pb4tHbTywK2xCda3
    Pb4tHbTywK2xCda3
    F2cOExhYOBgQXL6U

    • The lock switch can slide either towards or away from the battery. If it is pushed towards the battery, the release switch is locked and the battery can not be released.

    • Slide the switch away from the battery.

  3. bNRMDGTKZpkOZNDw
    bNRMDGTKZpkOZNDw
    toKGKGKaApyORhIN
    n6B2WYwMNieW5GSM

    • The battery release switch is just to the inside of the battery and slides parallel to it.

    • Push the switch to the side. It is not just an open or close switch, it actually pops the battery up so you will feel some resistance.

    • When inserting a battery back into the device, you do not need to touch this switch. Just press the battery firmly down, you will see and hear this switch catch.

  4. rgcjVvf2hdXcTZqI
    rgcjVvf2hdXcTZqI
    y65AuHGG2ldllLm1
    lcBrB6bLKHhWOcuX

    • Pull the battery up and out. Use a plastic opening tool if necessary.

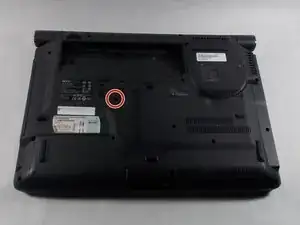

  5. pIOYLsOGcptpDEfq
    pIOYLsOGcptpDEfq

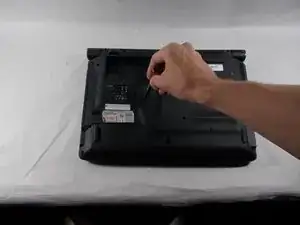

    rLFiItXpLoMhsSSs

    • Using a Phillips #1 screwdriver, remove the 7mm screw holding the drive.

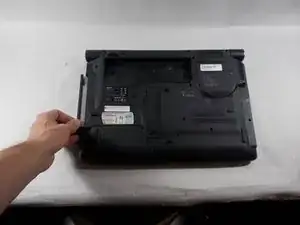

  6. yVEeTKJjmie3VodE
    yVEeTKJjmie3VodE
    6GY1UwSX3ZqZHLhO

    • Slide the drive out of the bay.

Abschluss

To reassemble your device, follow these instructions in reverse order.
