Acer Aspire 7736Z-4809 CD/DVD Disk Drive Replacement

Geschrieben von: Pnithan Jantarakolica
  • Kommentare: 0
Acer Aspire 7736Z-4809 CD/DVD Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Before replacing the CD/DVD disk drive, make sure the replacement drive is compatible with the laptop.

  1. mLWvXDAfv6UtXRWe

    • Unplug and power off the laptop.

    • If the battery is still connected to the laptop, remove the battery.

  2. jLRkLoUZBwDFkDg6

    • Flip over the laptop so that the back panel of the laptop is facing up.

  3. MIl3iVuTwNxSxucE
    MIl3iVuTwNxSxucE
    jgOTPJHCHX4lKECe
    MW5lyGqbUWoXojxH

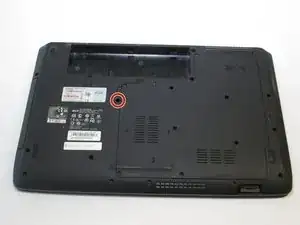

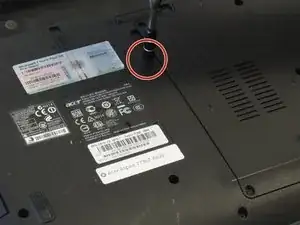

    • Use the Phillips #1 screwdriver to remove the 6.5mm Phillips #1 screw.

  4. ty3YxTpysQLRl3hj
    ty3YxTpysQLRl3hj
    SxZWdtDsD3RBrTE2

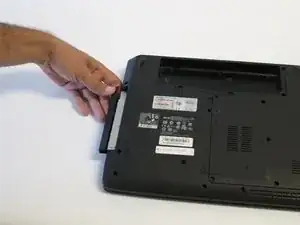

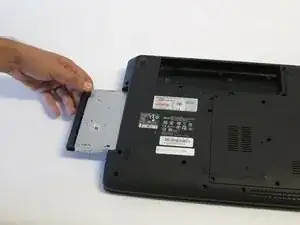

    • Remove the CD/DVD disk drive from the slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
