Acer Aspire 7736Z-4809 LCD Module Replacement

Geschrieben von: Pnithan Jantarakolica
  • Kommentare: 0
Acer Aspire 7736Z-4809 LCD Module Replacement

Schwierigkeitsgrad

Very difficult

Schritte

25

Zeitaufwand

1 - 2 Stunden

Einleitung

Before replacing the LCD module, make sure to back up your laptop.

  1. mLWvXDAfv6UtXRWe

    • Unplug and power off the laptop.

    • If the battery is still connected to the laptop, remove the battery.

  2. jLRkLoUZBwDFkDg6

    • Flip over the laptop so that the back panel of the laptop is facing up.

  3. bT4RxyVqDVubDxhV
    bT4RxyVqDVubDxhV
    TZZvF6HV5GII1TQY

    • Use the Phillips #1 screwdriver to remove the eight 6.5 mm Phillips #1 screws.

    • Only the four screws in the center are removable, the four along the edges are held in by rivets but can be loosened.

  4. cGmXTIjNXVmEN22I
    cGmXTIjNXVmEN22I
    LfuaKXaNSZZRlsJX
    ilkM5mI6yvYoelNs

    • Remove the back panel of the laptop.

  5. P2XyRe1gENXKTblu

    • Connect a grounding cord to a metal interface on the laptop.

    • Ground the laptop to prevent static electricity from damaging the electrical components inside the laptop.

  6. MQugDNuQTiiwMHLJ
    MQugDNuQTiiwMHLJ
    yKETDeUjwL5PFXRS
    jQXxvPr5I3rmJ2Yt

    • Remove the white antenna of the wireless module.

    • Use tweezers if you do not prefer using hands.

  7. SOUeoPauRNYXAccE
    SOUeoPauRNYXAccE
    ZtBvKVLceWajwotk

    • Remove the black antenna of the wireless module.

    • Use tweezers if you do not prefer using hands.

  8. JiVBtgXJqkyskbIj
    JiVBtgXJqkyskbIj
    qRFXkg2UJ2oNZQjl
    6YgXum3gZZVDbALo

    • Use the Phillips #1 screwdriver to remove the two 4.8mm Phillips #1 screws.

  9. xZHJi6PAgQOyB4No
    xZHJi6PAgQOyB4No
    EDEslWVDgscMZ2uS

    • Remove the wireless module from the laptop.

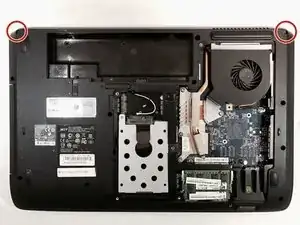

  10. EgB6tHIC4TJUr3QJ

    • Use the Phillips #1 screwdriver to remove the two 6.5mm Phillips #1 screws.

  11. IVLIJiUgf5nK2KBL
    IVLIJiUgf5nK2KBL
    vHv2XwKZJYXrgFUS

    • Use the Phillips #1 screwdriver to remove the three 4.5mm Phillips #1 screws.

  12. Z6VRdG4bUPg5Mohb
    Z6VRdG4bUPg5Mohb
    BTCNEUhV5wTZrfi5
    WtBCNbdEAGP6vdui

    • Orient the laptop so that the hinges between the LCD module and the laptop's bottom base are visible.

    • Use the plastic opening tools to separate the speaker panel from the laptop.

  13. jc6bVqEyKU3aodjX
    jc6bVqEyKU3aodjX
    iF5POskgXcxEfh1t

    • Flip over the LCD module of the laptop.

    • Use the plastic opening tools to separate the speaker panel from the laptop.

    • Insert the opening tool into the crack between the panel and the frame at either end. Slide the opening tool across the line. Reinsert the opening tool into the crack and apply leverage until the frame releases.

    • Repeat this step with the other side of the laptop.

  14. RtMIVrYoOif5Z6Eg
    RtMIVrYoOif5Z6Eg
    Dn2ibI6Yo6ZPMYLY
    GitRHvVbpLULgKbD

    • Gently hold the speaker panel by the sides and pull upwards to release the panel.

  15. CIaCAuZFdCvBNjNJ

    • Use the flat end of the medium sized metal spudger tool to release the two tabs at the top of the keyboard.

    • Do not remove the keyboard yet.

  16. WHkbKXdfECcEbANy
    WHkbKXdfECcEbANy
    D33MbpXx4FOCyOfj
    TCnvqH1LHQ3YR5VM

    • Insert a finger into the opening above the F11 key and pry the keyboard until it is released from the casing.

  17. fumGEvldan5RED1k
    fumGEvldan5RED1k
    I1N1GBHRtuQnYRMW
    EdR3SWLPvRNSDSR5

    • Gently raise the keyboard with your hands.

  18. 5grYkLTTMjYpKJv1
    5grYkLTTMjYpKJv1
    aDCcPEYVFVvxQkiQ
    BCyorWFWCNe5Oiif

    • Lift the black latch upwards to release the ZIF connector.

  19. SX5u6FfBcoUp6bOW

    • Remove the keyboard from the keyboard slot.

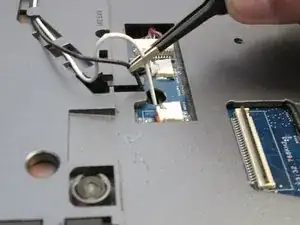

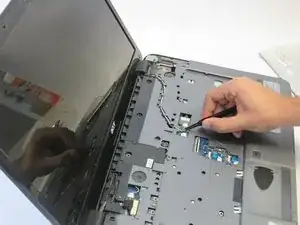

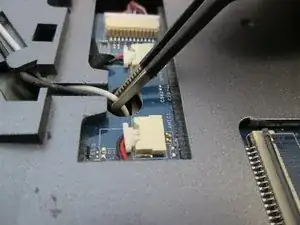

  20. j5hKJFItJMndRCW1
    j5hKJFItJMndRCW1
    HTL6eWZAPWVUH4dT
    KSxXVW1dFEpDi2JI

    • Use tweezers to pull the black and white antennas out of the hole.

    • Handle this step with care.

    • These are the same antennas of the wireless module.

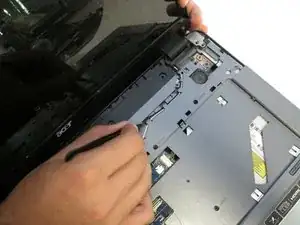

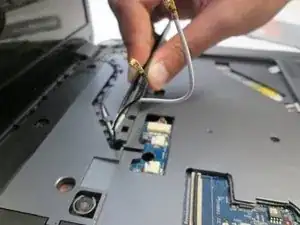

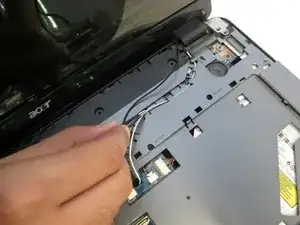

  21. c4XGJwvwSB63dvWC
    c4XGJwvwSB63dvWC
    okbQxQyIRDbfTPHG
    Xv23SVSAwYbsQKx4

    • Remove the antennas from underneath the tabs that hold them in place.

    • Do this until they are no longer underneath any tabs.

    • Be careful when handling with the antennas since they are sensitive.

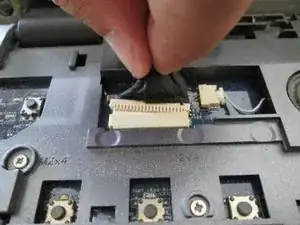

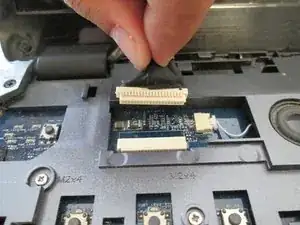

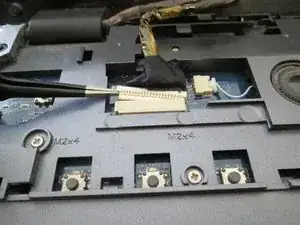

  22. G6UZco1IbBattY4T
    G6UZco1IbBattY4T
    TGH4RTWVlEpmyHZ5
    XqYkPWrSFZFpoNXk

    • Use tweezers to push the cable out of the port.

    • The cable is located on the left side of the open laptop.

    • Be careful when handling the cable.

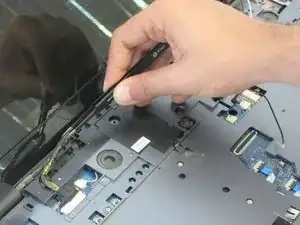

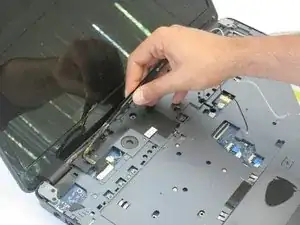

  23. YtlX1kwMKslGOyD5
    YtlX1kwMKslGOyD5
    EJfnaUHbggV1TAcQ

    • Release the cable from the tabs holding it in place.

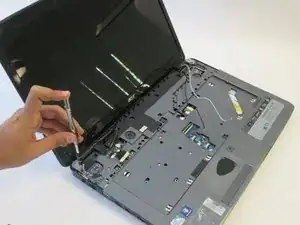

  24. LroDJFNdqOhrssbB
    LroDJFNdqOhrssbB
    vmco6WVGQBtPVKtV

    • Use the Phillips #1 screwdriver to remove the four 11mm Phillips #1 screws.

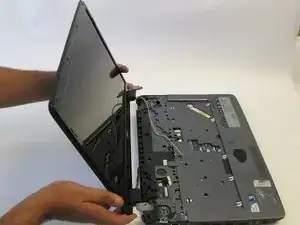

  25. FKQramgOkLIdWFRf
    FKQramgOkLIdWFRf
    dGpk3f6uJjRlDL2B

    • Grab the display assembly from the base and lift it up and off the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
