Acer Aspire 7736Z-4809 Wireless Module Replacement

Geschrieben von: Pnithan Jantarakolica
  • Kommentare: 0
Acer Aspire 7736Z-4809 Wireless Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

Before replacing the wireless module, make sure the replacement module is compatible with the laptop.

  1. mLWvXDAfv6UtXRWe

    • Unplug and power off the laptop.

    • If the battery is still connected to the laptop, remove the battery.

  2. jLRkLoUZBwDFkDg6

    • Flip over the laptop so that the back panel of the laptop is facing up.

  3. bT4RxyVqDVubDxhV
    bT4RxyVqDVubDxhV
    TZZvF6HV5GII1TQY

    • Use the Phillips #1 screwdriver to remove the eight 6.5 mm Phillips #1 screws.

    • Only the four screws in the center are removable, the four along the edges are held in by rivets but can be loosened.

  4. cGmXTIjNXVmEN22I
    cGmXTIjNXVmEN22I
    LfuaKXaNSZZRlsJX
    ilkM5mI6yvYoelNs

    • Remove the back panel of the laptop.

  5. P2XyRe1gENXKTblu

    • Connect a grounding cord to a metal interface on the laptop.

    • Ground the laptop to prevent static electricity from damaging the electrical components inside the laptop.

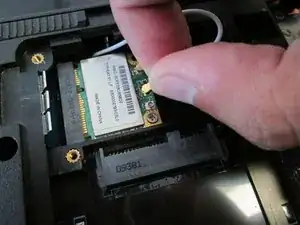

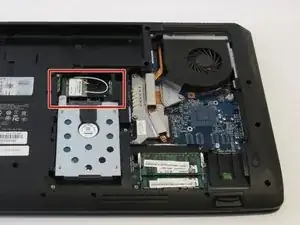

  6. MQugDNuQTiiwMHLJ
    MQugDNuQTiiwMHLJ
    yKETDeUjwL5PFXRS
    jQXxvPr5I3rmJ2Yt

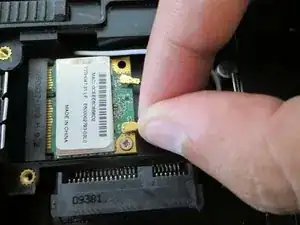

    • Remove the white antenna of the wireless module.

    • Use tweezers if you do not prefer using hands.

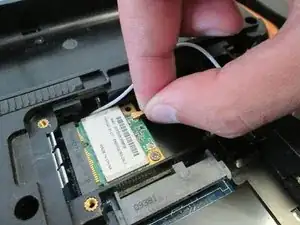

  7. SOUeoPauRNYXAccE
    SOUeoPauRNYXAccE
    ZtBvKVLceWajwotk

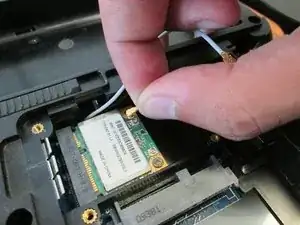

    • Remove the black antenna of the wireless module.

    • Use tweezers if you do not prefer using hands.

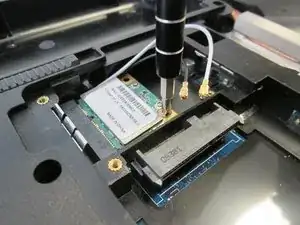

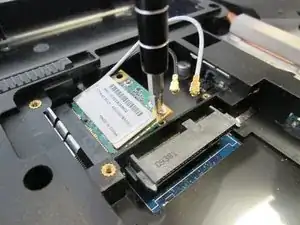

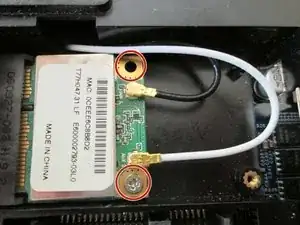

  8. JiVBtgXJqkyskbIj
    JiVBtgXJqkyskbIj
    qRFXkg2UJ2oNZQjl
    6YgXum3gZZVDbALo

    • Use the Phillips #1 screwdriver to remove the two 4.8mm Phillips #1 screws.

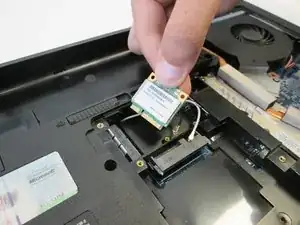

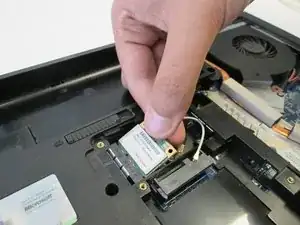

  9. xZHJi6PAgQOyB4No
    xZHJi6PAgQOyB4No
    EDEslWVDgscMZ2uS

    • Remove the wireless module from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
