Acer Aspire 8735G Disassembly

Geschrieben von: Regome
  • Kommentare: 0
Acer Aspire 8735G Disassembly

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 - 4 Stunden

Einleitung

We will completely disassemble the Acer aspire 8735g and remove every component until the motherboard. (This is work-in progress and is yet not finished)

  1. ZVI1vgeatoJOWEnu

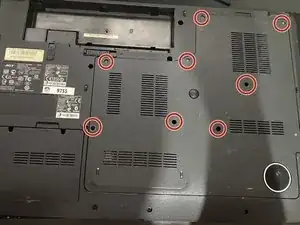

    • Use a Philips J1 driver to remove eight screws securing the bottom case.

    • Remove all of the 8 screws. After that you are in.

  2. WwheJMwl1Ir1OK5f

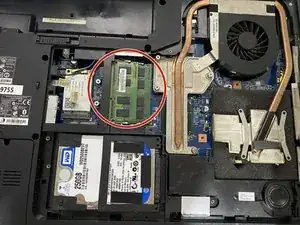

    • Now try to spot the Memory, which is here indistinguishable as a red circle.

  3. sI6kEdacNxnd5D6r

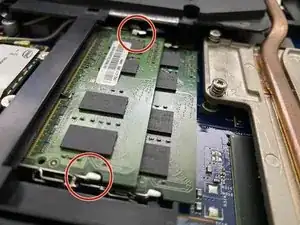

    • Don't remove the ram before pushing the pins.

    • After the previous step, remove the ram by pushing the pins holding it outwards.

  4. OimalV1FRtIhVKsB

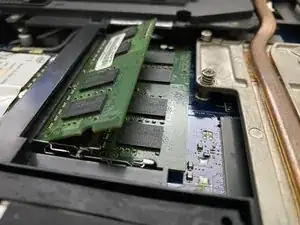

    • If you need to change your memory and nothing else then now is the time to do so.

    • After that the pins jump up and you can carefully remove the ram.
