Acer Aspire AS3810TZ-4806 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 10 Minuten

Einleitung

For this guide you will need a phillips screwdriver. Before beginning, make sure you completely power down your laptop and remove the battery.

  1. Vi2WtCXWEYtsMY6c

    • Unlock the battery release by sliding it to the right.

  2. gQcLrVWBgytQJMAM
    gQcLrVWBgytQJMAM
    QQ5YZTZ5iDDktlVa

    • Slide the release button and remove the battery.

  3. XaSHF1kKjO6Q5fmR

    • Using the Phillips #1 screwdriver, unscrew the single screw and remove the cover.

    • Ensure the computer is powered off and the battery is removed.

  4. AE4uv3PA5Iqg1OnV
    AE4uv3PA5Iqg1OnV
    UD1ux1LEIfpMOkUH

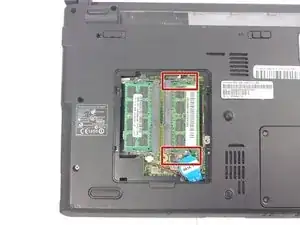

    • Push the side of the clips away from each other to release the RAM. Remove the RAM from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
