Acer Aspire AS3810TZ-4806 Screen Replacement

Geschrieben von: Matthew Ibanez
  • Kommentare: 0
Acer Aspire AS3810TZ-4806 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

For this repair you will need a phillips screwdriver. Make sure your laptop is completely powered off and remove the battery

  1. Vi2WtCXWEYtsMY6c

    • Unlock the battery release by sliding it to the right.

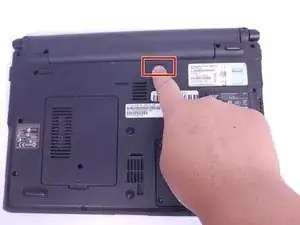

  2. gQcLrVWBgytQJMAM
    gQcLrVWBgytQJMAM
    QQ5YZTZ5iDDktlVa

    • Slide the release button and remove the battery.

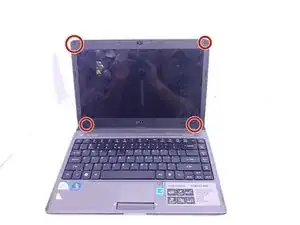

  3. CoXmIPGUZLWVNTNF
    CoXmIPGUZLWVNTNF
    635ZItG4362bpSNg

    • Remove the rubber covers from the corner of the screen.

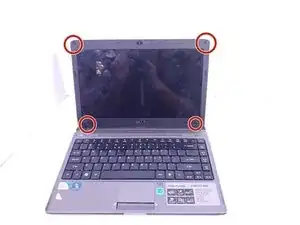

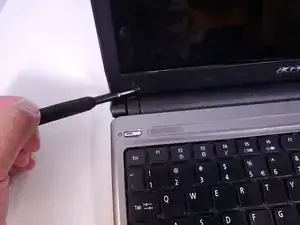

  4. VKbenBkJcvcWjETr
    VKbenBkJcvcWjETr
    TcMneCRLYhJpYSYG

    • Using the Phillips #1 screwdriver, remove the four screws holding the plastic siding to the screen.

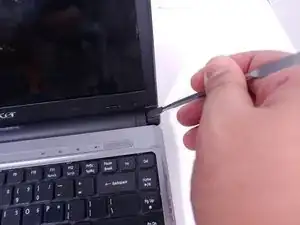

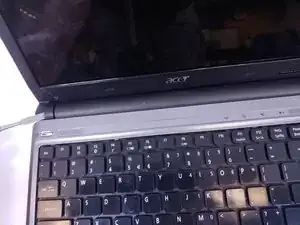

  5. bPORsKHAljJHIULu
    bPORsKHAljJHIULu
    iw3rXjsqZDBapIst

    • Remove the plastic joint covers.

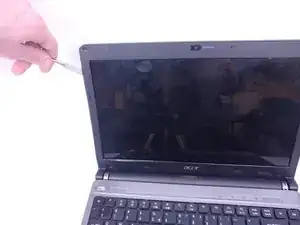

  6. WGntvmyqFL6ZvHiU

    • Remove the plastic siding from the screen.

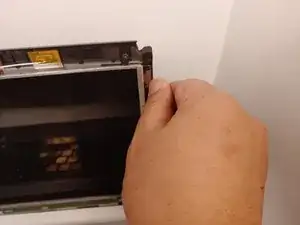

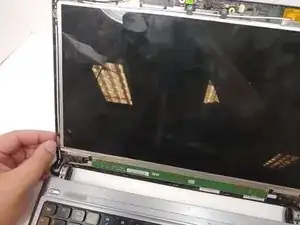

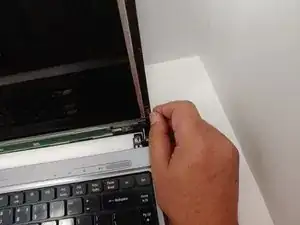

  7. 1sJrnJta3obhpVy1
    1sJrnJta3obhpVy1
    RbSqEuYolExkdPkh
    YswGIyqoG5u5yaDd

    • Remove the four metal bars in each corner of the screen.

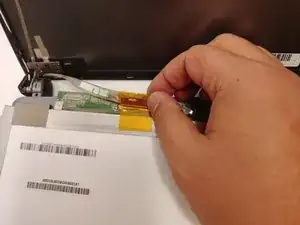

  8. 3WOSZIpxI1LqJDls

    • Unplug the screen from the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
