Acer Aspire AS3810TZ-4806 Trackpad Replacement

Geschrieben von: Matthew Ibanez
  • Kommentare: 0
Acer Aspire AS3810TZ-4806 Trackpad Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

For this guide you will need a phillips screwdriver. Make sure your laptop is completely powered off and the battery is removed. Remove the RAM and Hard drive before starting this guide.

  1. Vi2WtCXWEYtsMY6c

    • Unlock the battery release by sliding it to the right.

  2. gQcLrVWBgytQJMAM
    gQcLrVWBgytQJMAM
    QQ5YZTZ5iDDktlVa

    • Slide the release button and remove the battery.

  3. IqoRTId2OdOqF1Ja
    IqoRTId2OdOqF1Ja
    EM64lwajRBrJTsn1

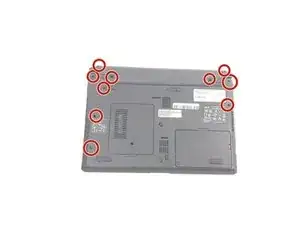

    • Using the Phillips #1 screwdriver, unscrew the ten screws securing the back panel.

  4. rFD1hgVTNZAyRBIo

    • Remove the two black connectors at the base of the screen.

  5. EKRWNdTHhrwOyqdb

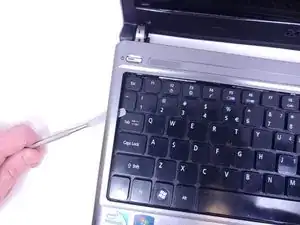

    • Remove the grey keyboard cover with a spudger.

  6. y6xeDoTHHTJsHh2w
    y6xeDoTHHTJsHh2w
    yHY5k16fbTEZay2s

    • Unscrew the trackpad sensor from the keyboard cover and remove the sensor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
