Acer Aspire E 11 Battery Replacement

Geschrieben von: Carlos Rodriguez
  • Kommentare: 7
Acer Aspire E 11 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

This guide walks you through the proper steps to disconnect and remove the battery from the Laptop.

  1. i4WR4cFYVGOisOqM
    i4WR4cFYVGOisOqM
    BaFRFM2ppqym2JSq

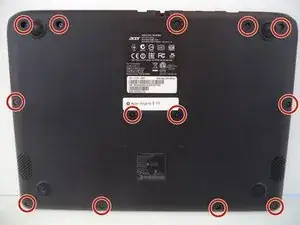

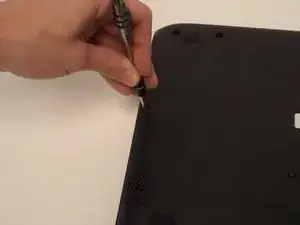

    • Unscrew the thirteen 6.2mm Phillips #1 screws located on the bottom of the device.

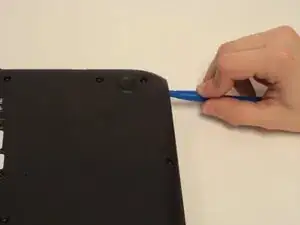

  2. TZL5FX2ilFLlG5uI
    TZL5FX2ilFLlG5uI
    GNEETvtqebxQcXbb
    Spgdp4YBRQnUeLeW

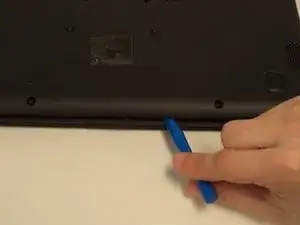

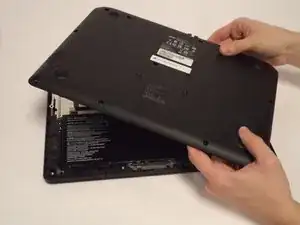

    • Lift the back panel using a plastic opening tool. Slowly make your way around the device until the back panel comes off.

  3. N4XOd6bSWsD1T5Qc
    N4XOd6bSWsD1T5Qc
    6kdsGCbH4PNiYUnZ

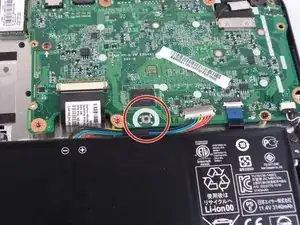

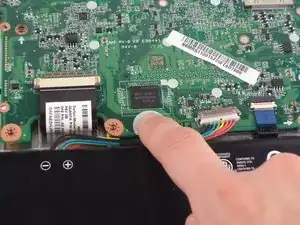

    • Press and hold the small black button located on the motherboard just above the battery for five seconds.

    Whats this button for actually? What does it do?

    Wadi Wahab -

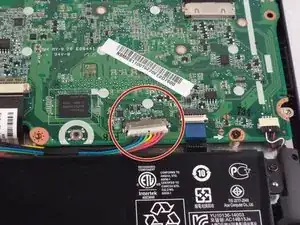

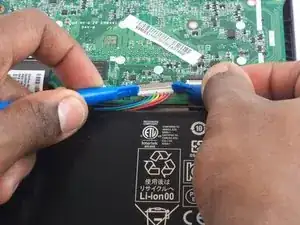

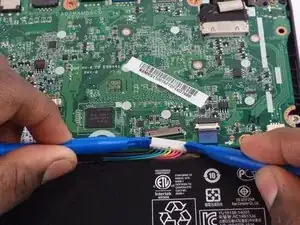

  4. m4DlPOvHr5lqfLRl
    m4DlPOvHr5lqfLRl
    dpedXEQBsiVQTSCx
    WjZ1xnnZNoVUYrVm

    • Using two plastic opening tools tightly grab the connector going from the battery to the motherboard and pull to unplug.

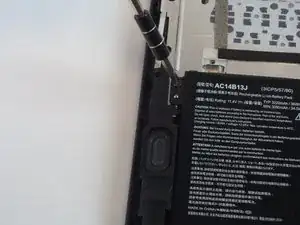

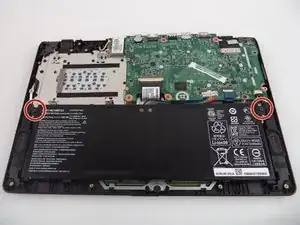

  5. EoNka2WCdY25nSp6
    EoNka2WCdY25nSp6
    4IcxsdDhqjUe5s6n
    WDtUw2H3VDUNJXrH

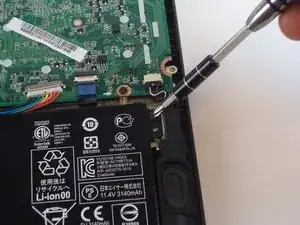

    • Unscrew two 6.2 mm Phillips #1 screws on the right and left sides of the battery.

  6. 4avPE23iSQBw1CUM

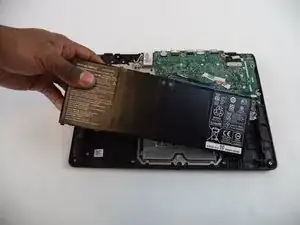

    • Carefully remove the battery by lifting it out of the casing.

    The E-11 that I have has 2 screws on each end of the battery. 1 at the upper left corner, 1 at the lower left corner, 1 at upper right corner and 1 approx 1" below upper right and inboard approx 1/2". Battery #AC13C34 (3ICP5/60/80).

    [deleted] -

Abschluss

To reassemble your device, follow these instructions in reverse order.
