Acer Aspire E1-470P-6659 Hard Drive Replacement

Geschrieben von: Siyu Jia
  • Kommentare: 0
Acer Aspire E1-470P-6659 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

8 - 10 Minuten

Einleitung

The hard drive provides permanent data storage. Hard drive failure causes crushing laptops and missing files. If your hard drive is diagnosed of irreversible problems, replace it the sooner the better using this guide to prevent larger losses.

  1. xROnipd3bMyyLfMd

    • Turn off the laptop and disconnect all device cords.

  2. TdN2sqSnFGLSRrCL

    • Flip the laptop over so the bottom is facing you.

  3. SAu1fy2ApvJhs5VR
    SAu1fy2ApvJhs5VR
    rCXOifHtFABvI6qS
    deqxK2yeuQcw6FAs

    • Use your finger or a spuger to pull the battery release switch.

  4. IrfZYF6GgRUtW1hL
    IrfZYF6GgRUtW1hL
    NScGuWC4LJFG5pMJ
    1eLjS5TOnBLg2LCP

    • Remove the battery from the laptop.

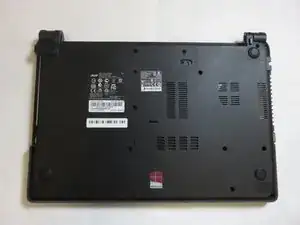

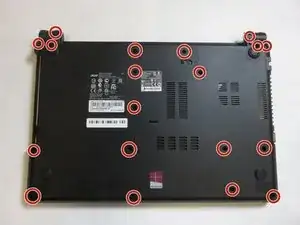

  5. EC1MCZRRdOOGrexp
    EC1MCZRRdOOGrexp
    ZCYRugQuXhNnkYMC

    • Remove nineteen screws from the back panel using a Phillips #0 Screwdriver .

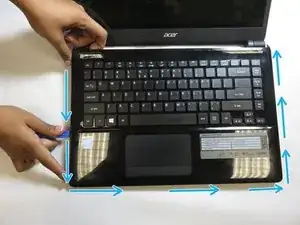

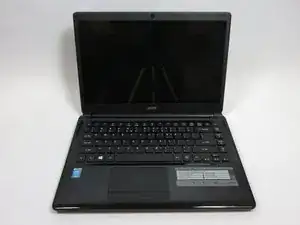

  6. OEsvnH4qcSY65uvh
    OEsvnH4qcSY65uvh
    KPl3DjJr2QpGFv2v
    daQYEBhck441ysGG

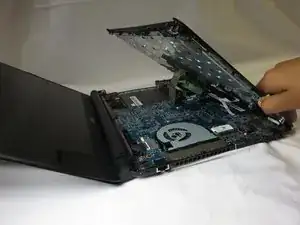

    • Run the plastic opening tool across from one corner to another along the edge.

    • Separate the keyboard panel gently.

    • Lift the keyboard slowly from the laptop but do not lift completely because there are ribbon cables attached.

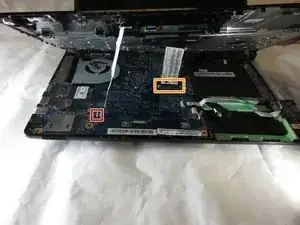

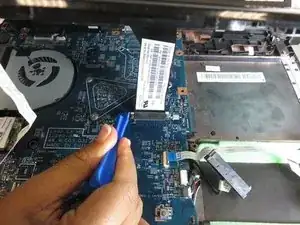

  7. IYHfKQrNsoKnFDTR
    IYHfKQrNsoKnFDTR
    1TXxMiWxJ1hGiCIw

    • Disconnect the two keyboard assembly ribbon cables from motherboard.

    • To release small ribbon cable, use spudger or fingers to flip gray bar along edge over.

    • To release larger ribbon cable, use pry tool or spudger to slide white plastic clip forward.

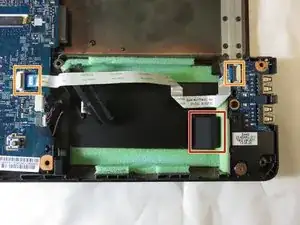

  8. twMixr5kKSxPCAOe

    • Pull up the release tab beside the hard drive.

    • Disconnect portion of ribbon cable that is covering the hard drive.

    • Handle the ribbon carefully. Do not break the metal contact.

    • While reconnecting the ribbon after replacing a new hard drive, face the blue side with a label up. Make sure the black line beside the sticker is not crooked, so that the ribbon is tight.

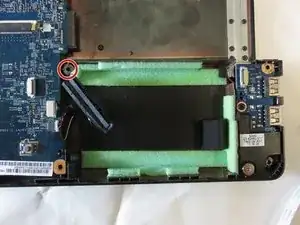

  9. LBeDsVPMpXMJyZ21

    • Remove the hard drive screw using Phillips #0 Screwdriver.

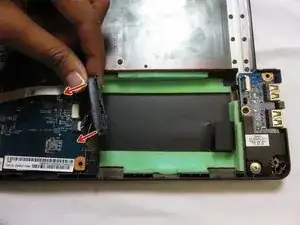

  10. UL1GlkYh66gWraOD

    • Pull the hard drive out gently. Be aware that it is connected to the adapter.

    • Gently remove adapter by pulling on both ends simultaneously to separate it from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
