Acer Aspire E1-470P-6659 Motherboard Replacement

Geschrieben von: Faith Lobaton

Kommentare: 0

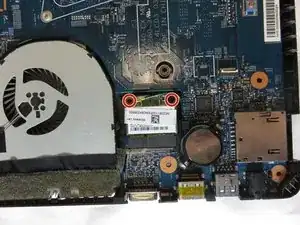

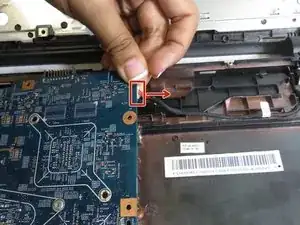

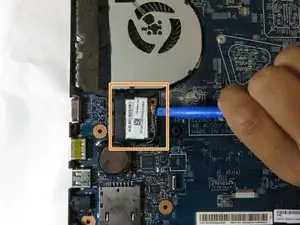

Acer Aspire E1-470P-6659 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 30 Minuten

Einleitung

If you have problems with the motherboard, or the motherboard needs to be replaced or repaired, use this guide to remove and replace your motherboard.

Werkzeuge

Schritt 1

Turn off the laptop and disconnect all device cords.

Schritt 2

Flip the laptop over so the bottom is facing you.

Schritt 3

Use your finger or a spuger to pull the battery release switch.

Schritt 4

Remove the battery from the laptop.

Schritt 5

Remove nineteen screws from the back panel using a Phillips #0 Screwdriver .

Schritt 6

Run the plastic opening tool across from one corner to another along the edge.
Separate the keyboard panel gently.
Lift the keyboard slowly from the laptop but do not lift completely because there are ribbon cables attached.

Schritt 7

Disconnect the two keyboard assembly ribbon cables from motherboard.
To release small ribbon cable, use spudger or fingers to flip gray bar along edge over.
To release larger ribbon cable, use pry tool or spudger to slide white plastic clip forward.

Schritt 8

Pull up the release tab beside the hard drive.
Disconnect portion of ribbon cable that is covering the hard drive.
Handle the ribbon carefully. Do not break the metal contact.
While reconnecting the ribbon after replacing a new hard drive, face the blue side with a label up. Make sure the black line beside the sticker is not crooked, so that the ribbon is tight.

Schritt 9

Remove the hard drive screw using Phillips #0 Screwdriver.

Schritt 10

Pull the hard drive out gently. Be aware that it is connected to the adapter.
Gently remove adapter by pulling on both ends simultaneously to separate it from the hard drive.
