Acer Aspire E1-510-2500 RAM Card Replacement

Geschrieben von: Sebastian Taylor
  • Kommentare: 1
Acer Aspire E1-510-2500 RAM Card Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

3 - 8 Minuten

Einleitung

The RAM card should be replaced if the computer has memory issues. This is sometimes the problem when the computer won't boot or is running too slowly.

  1. JgXEyJAUWT4SwaOU

    • Ensure that your laptop is completely switched off, and disconnected from the power source.

    • Flip the laptop so that the base of the laptop is facing up.

  2. LVcwYL4DlbWwxqOb
    LVcwYL4DlbWwxqOb
    eA3ZGAHDUiJkUe1s

    • Insert a spudger into the battery release latch.

    • Slide the battery release latch to the right, this will eject the battery for safe removal.

  3. KVGnNaFEJMcOuoEL
    KVGnNaFEJMcOuoEL
    QMXTyc5JOFf5W3Xe

    • Carefully slide the battery out of the battery's home.

  4. SkZFjBNNdXItrPXj
    SkZFjBNNdXItrPXj
    4w15qqYsvEe6yO3W

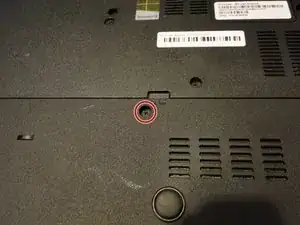

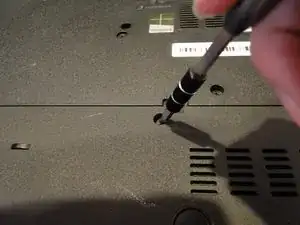

    • Using a Phillips 1 screwdriver, remove the 9 mm screw which secures the back panel.

  5. lwFOnGZBCK2SdnTB
    lwFOnGZBCK2SdnTB
    1DPXqNBNJnsDWodp

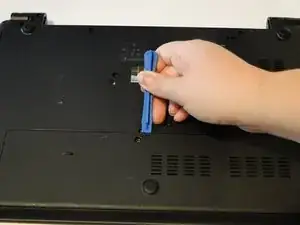

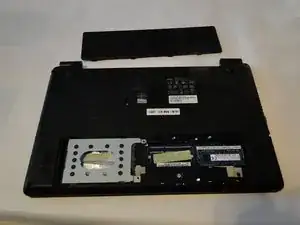

    • Use a plastic opening tool to carefully pry the back panel from its home.

    • When reassembling, insert the panel from the edge opposite the screw first.

  6. NCvmKyaJP5QC3ltL
    NCvmKyaJP5QC3ltL
    XWqMCeoyOYhjMddQ
    JOoRqReacDdQB3Y6

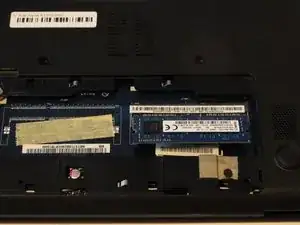

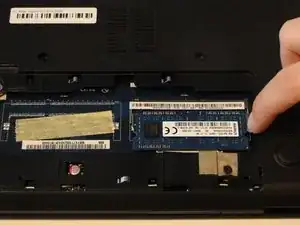

    • Locate the tabs on either side of the RAM card.

    • Push out on both tabs simultaneously to release the RAM card.

    • The RAM card should raise slightly at the unattached edge.

  7. bou5w4MlXuhBJpNC
    bou5w4MlXuhBJpNC
    NvjeLCy4PH5ONPDC

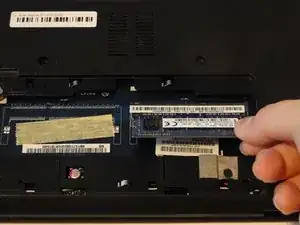

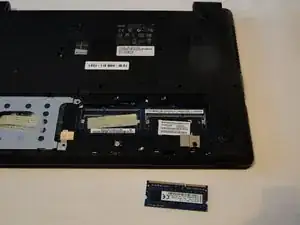

    • Carefully remove the RAM card from its home.

    Nice concise steps. Great pics. Simple. GREAT HELP! Now will research cost of new MEM.

    Would not boot. MESSAGE was DIMM1 and DIMM2 don’t match. Hope replace this one board will fix.

    Nik Bunt -

Abschluss

To reassemble your device, follow these instructions in reverse order.
