Acer Aspire E1-510P-4637 RAM Replacement

Geschrieben von: Caleb lindsay
  • Kommentare: 0
Acer Aspire E1-510P-4637 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

  1. Ci1emy66YxoULWo2

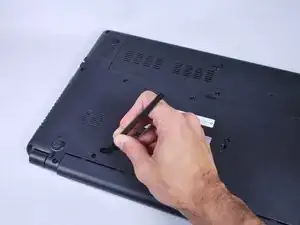

    • To release the battery, depress the battery release with a nylon spudger. Hold the latch down and slide it over.

  2. cuGAhIN6J62ZLpTA

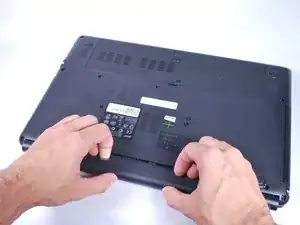

    • Firmly grab hold of the battery and slide it out of the laptop.

  3. NPPidVPaVbTc2ML2

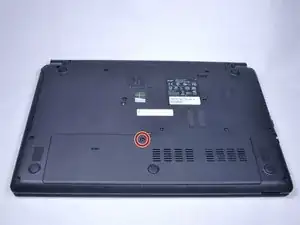

    • Remove the M2.5x8 screw with a PH1 screwdriver.

  4. tIQTVOkSBchgKBvm

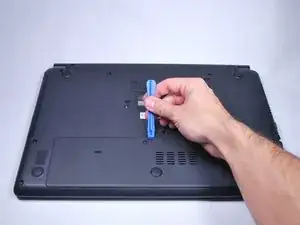

    • Use the plastic opening tool to pop up off the back cover.

  5. FbAkUPYtCyyhjfHY
    FbAkUPYtCyyhjfHY
    JS3JTaLJFgFjb4Qh
    oyHqdfmmNEclFbwG

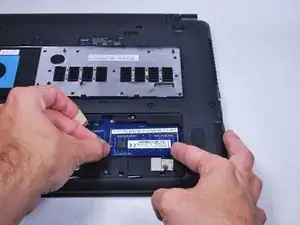

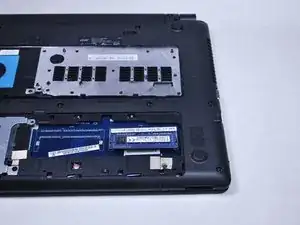

    • Use your fingers to pinch the retaining latch. This will free the RAM.

  6. CRAHqUDcAjGUMf1K
    CRAHqUDcAjGUMf1K
    KsOtUwyCTTLSDQfK
    QLjhKbjVLUsFODQJ

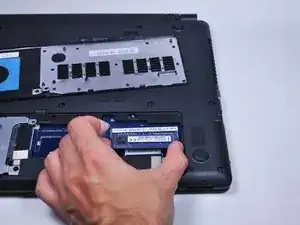

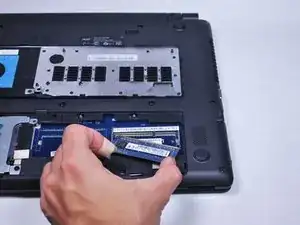

    • Rotate the RAM sticks up and slide the RAM out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
