Einleitung

  1. Ci1emy66YxoULWo2
    • To release the battery, depress the battery release with a nylon spudger. Hold the latch down and slide it over.

  2. cuGAhIN6J62ZLpTA
    • Firmly grab hold of the battery and slide it out of the laptop.

  3. QEQfnureWPT6u1ei
    QEQfnureWPT6u1ei
    JDKlKGHw2CwMC3Or
    ZZxiQ2bjivcfuCy3

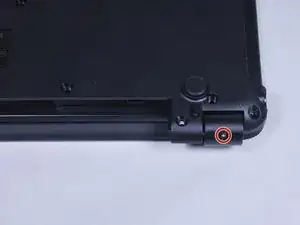

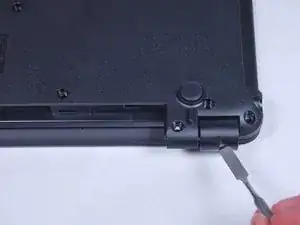

    • Remove the plastic screw covers located near the laptop's hinge using a metal spudger.

    • Remove the two M2.5x8 screws highlighted in the picture with a PH0 Phillips screwdriver.

  4. PL3TtqHAR4vn2LDf
    PL3TtqHAR4vn2LDf
    L5eOeO1UaFJLVeta
    bcDL5v4PQr4BsPm4

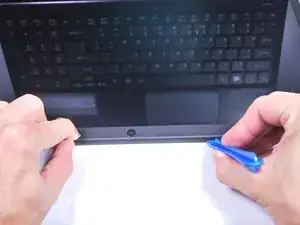

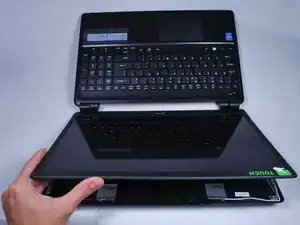

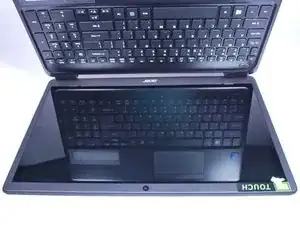

    • Flip the laptop over and open it up so the screen is facing up and the top of the screen is facing you.

    • Use a plastic opening tool to separate the the touchscreen from the back cover.

    • Carefully work your way around the frame and gently pry. Be careful not to brake the frame or damage the screen.

  5. TcFBZs5G1mJGfJbI
    TcFBZs5G1mJGfJbI
    eagWNxVOagbw3KGh
    ny1BLiIlWSTXT3oi

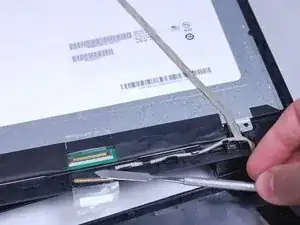

    • Disconnect the display cable by first taking off the tape using a metal spudger and then pulling on the black tab.

  6. jiGdBi35A6yFe3St
    jiGdBi35A6yFe3St
    UT1aXFGMfvEMM2bF

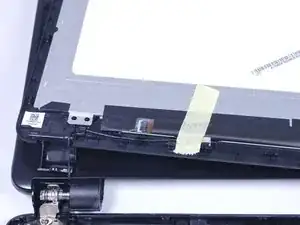

    • Take off the yellow tape connecting the display to the border.

  7. VETDsmbGRNrRaG6g
    VETDsmbGRNrRaG6g
    KAurIAHxsCqGAmJH

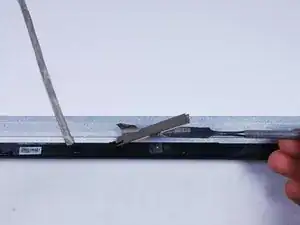

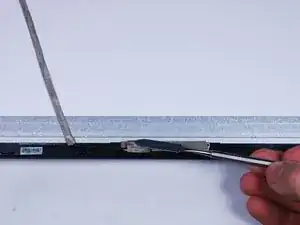

    • Pull back the adhesive using the metal spudger.

    • Pry out the camera by lifting the adhesive with the metal spudger. Then, remove the camera by lifting it up by one side.

  8. jOKXbvAsuXkOjdtl

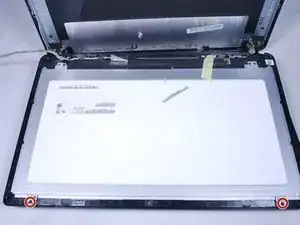

    • Remove the two brackets holding the displays by unscrewing both M1 .6x3 screws with a PH0 Phillips screwdriver.

  9. jtiHlNUinLya4cei

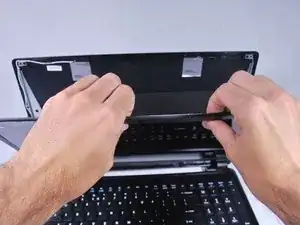

    • Release the display from the border using your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
