Keyboard mistyping, keys not working, or keys jammed? This guide shows how to remove the keyboard on an Acer Aspire E1-531-2438.

  1. CIfiDwaBwcU1LdKJ
    CIfiDwaBwcU1LdKJ
    ex6KVpXFNxDLg6Ng
    • Unplug and power down the device before removing the battery.

    • Turn the device over so the back side is facing up.

    • Using a spudger, slide the orange latch to the right. This will release the battery, which should pop up from the device.

    • Use two hands tilt the side of the battery closest to the orange latch upward as shown in the images.

  2. ESPVxnurrsJSPhrG
    • Tilt the side of the battery closest to the orange latch upward.

    • Lift the battery up and out of the device.

  3. 5MIAoFMjNXW6wNXK
    5MIAoFMjNXW6wNXK
    VRA5CAOWK2uDEKoE

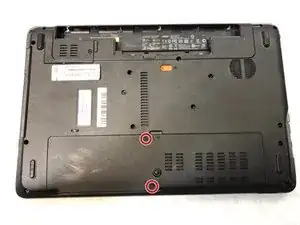

    • Using a Phillips #0 screwdriver, remove the two 9mm screws on the access panel.

  4. xRvL6HpFJ4MhS55L
    xRvL6HpFJ4MhS55L
    EJsTljRJKMnV1VBv
    nSyXdINNioiN5De6

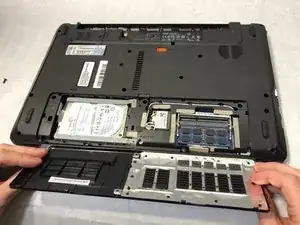

    • Using the indentation, pry open the access panel with your fingers or a spudger.

    • Remove the access panel to expose the hard drive, WiFi chip, and RAM modules.

  5. n23HvbvMsxkO43LM
    n23HvbvMsxkO43LM
    kaUwu11ecQyCRKFN
    oUQsV2vMNVImYCBn

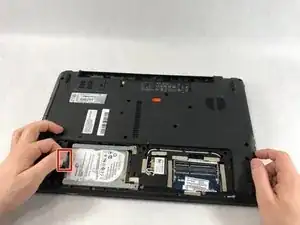

    • Grip the plastic tab on the hard drive, then pull to the left to unplug the drive from its socket.

    • Once free from the socket, lift the hard drive up and out of the device.

  6. JAglBlmOZDF1XUsg
    JAglBlmOZDF1XUsg
    anGcuIhImYDVJGfP
    NDoqPUAXRlGpXC2N

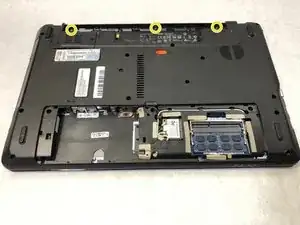

    • Using a Phillips #0 screwdriver, remove all of the following screws:

    • Fifteen 9mm screws

    • One 6mm screw

    • Three 3.5mm screws

  7. AebTldBn4hYHcZcp
    AebTldBn4hYHcZcp
    TbQb2x26Ap4fLcoe
    xKNHbahVeRgnkfiK

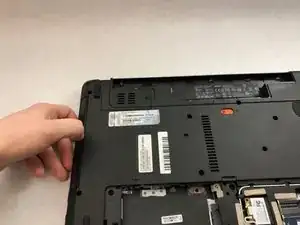

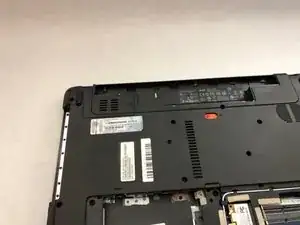

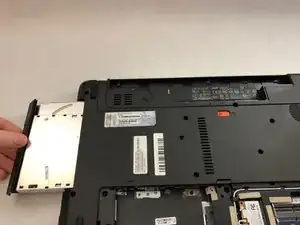

    • Remove the optical drive by sliding it out of its slot on the side of the laptop.

  8. iJNSDmlelO6OWY5p
    iJNSDmlelO6OWY5p
    Zu1KOItNJ66wRefP

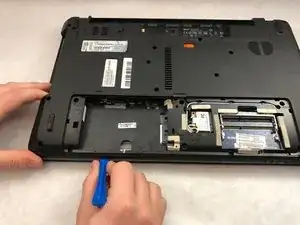

    • Using a plastic opening tool, pry along the seam running the perimeter of the laptop to separate the bottom case from the palmrest assembly.

    • Flip the device over and open the laptop so that the keyboard is visible.

    • Lift up the palmrest assembly just far enough to access the connectors underneath.

  9. YIfKlfyvpLAlYwXI
    YIfKlfyvpLAlYwXI
    h2fbEOAriBfGTBTN

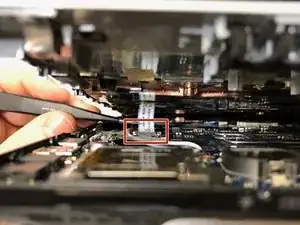

    • Using a pair of tweezers, disconnect the small white ribbon cable from the connector near the left side of the device.

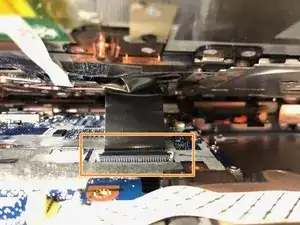

    • Disconnect the large black ribbon cable near the middle of the device. Gently pull on the cable away from you.

  10. EFqYmL2AfCMV53SX
    EFqYmL2AfCMV53SX
    oQhC1MahZHEtR6wi

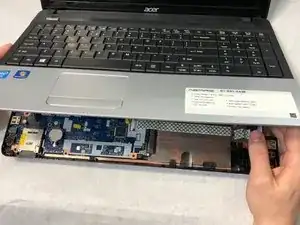

    • Lift and remove the palmrest assembly and the attached keyboard.

  11. 6ImVQlttIed5fVhe
    6ImVQlttIed5fVhe
    QqeNvCserfCUHXXA
    XCgKTxMlWbXD3lwg

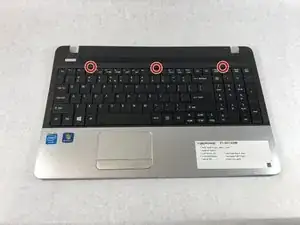

    • Using a spudger, release the keyboard by prying at the indicated points.

    • Remove the keyboard from the palmrest assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
