Acer Aspire E1-532-2616 RAM Replacement

Geschrieben von: John Alberts
  • Kommentare: 1
Acer Aspire E1-532-2616 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

This guide will help users remove and replace the RAM of the Acer Aspire E1-532-2616.

  1. KT6SpiayQfnu3XNl
    KT6SpiayQfnu3XNl
    TZskGIGoREJuiceV

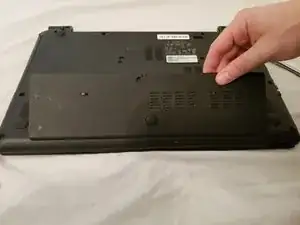

    • Use a Phillips screwdriver to remove the CM2.5*3 screw on the shown cover.

    • Lift and remove the cover from the end that had the holdinging screw.

    • Lifting the plastic cover will require some pressure.

  2. uLjJmaM2VFVdVyux
    uLjJmaM2VFVdVyux
    mJ4PHClXfGBE56Qc
    5UuWbQtXGcAU4DVK

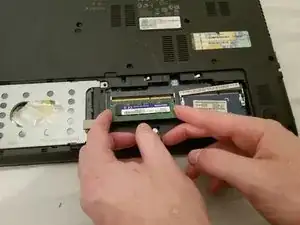

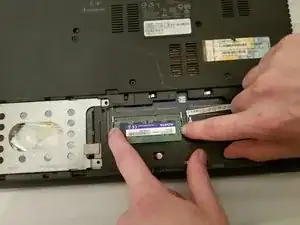

    • Push out the tabs on the other side of the RAM stick.

    • The RAM stick should raise up when the tabs are depressed.

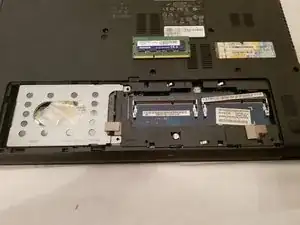

    • Pull the RAM stick out

    • When replacing, make sure to line up the inserts.

    What’s the MAX supported RAM?

    Walt McGraw -

Abschluss

To reassemble your device, follow these instructions in reverse order.
