Acer Aspire E1-571 - HDD / RAM Memory / WiFi card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

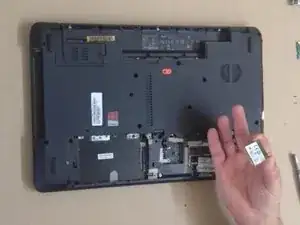

This manual will help you if you want to change or uprade your SATA HDD to SSD or DDR3 RAM Module or if you want to replace your not working WiFi card.

When you doing this, do not rush !!!


Please SUBSCRIBE to my channel ツ

  1. EMwHdaqVjxuv11pW
    EMwHdaqVjxuv11pW
    A6jfRHv3njbVnbBw

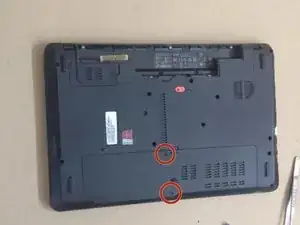

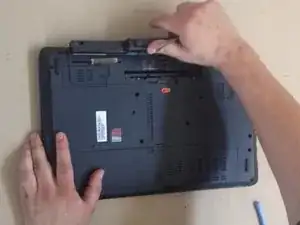

    • Remove the battery.

    • Unscrew 2x screws M 2.5x8.0

  2. HgwKSXRxcKR3xoAf
    HgwKSXRxcKR3xoAf
    t1KWVNM2lYCDdWJH
    Z4aOnOADHUeUwgTy

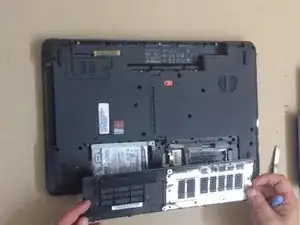

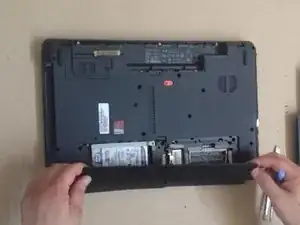

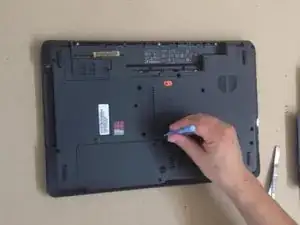

    • With a plastic tool remove the Memory RAM / Hard Drive / Wifi Cover Door

  3. WrdvKaqRh5yDnkAP
    WrdvKaqRh5yDnkAP
    s1M5hFouHJ5yAnZL
    GSunJGD13k5YM5CF

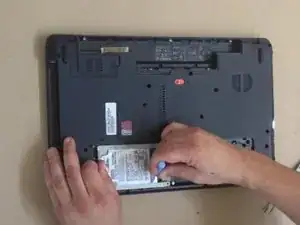

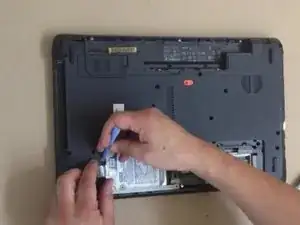

    • Drag the SATA HDD to release it.

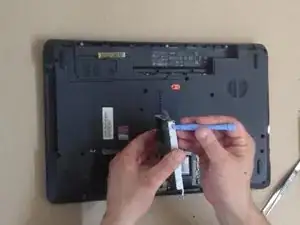

    • Unscrew 4x screws to remove the disk from the HDD Caddy Holder.

  4. YyRVETNWAKwfAXU2
    YyRVETNWAKwfAXU2
    gp3UoDokiAtjbwKm
    KitQC5AEcaaNmdaG

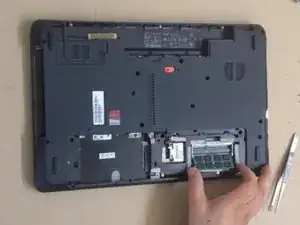

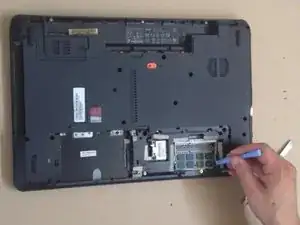

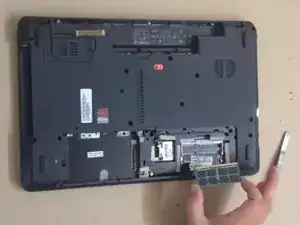

    • Use plastic tool to release the DDR3 RAM memory module from the locking clips.

    • The RAM memory modules have a key notch position to prevent putting the board incorrectly.

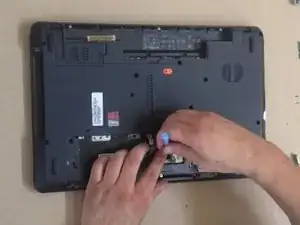

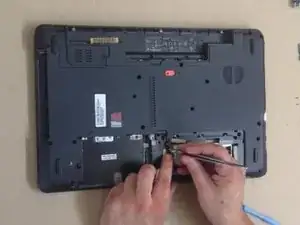

  5. ntLCCWOxaN5JUYNt
    ntLCCWOxaN5JUYNt
    lsjqNSOuDRWfltG4
    V62iLIhOOQ6kHNqD
Abschluss

To reassemble your device, follow these instructions in reverse order.
