Acer Aspire E1-572G Keyboard Replacement

Geschrieben von: Sander Degryse
  • Kommentare: 2
Acer Aspire E1-572G Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 45 Minuten

Einleitung

This guide will show you how to replace a broken keyboard.

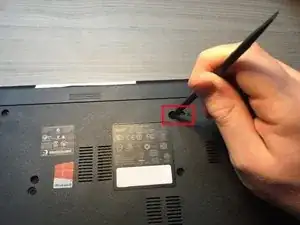

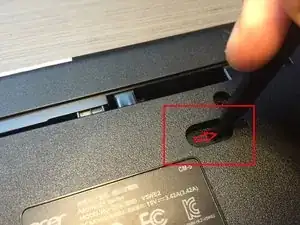

  1. TIqAMJiDgnwKDNTK
    TIqAMJiDgnwKDNTK
    XN4iDoPPbWUD1Zkq

    • Press and slide battery-lock button to remove the battery.

  2. 5wl1LduOGacNUmVA

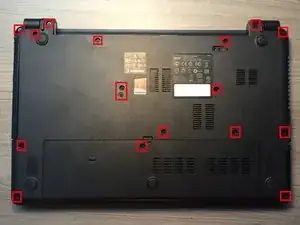

    • Remove 17x Philips screws

  3. 6dsifkC2NsNrAtDx

    • Remove the plastic cover

    • Remove 2x Philips screws

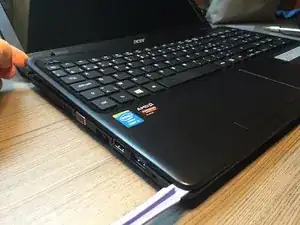

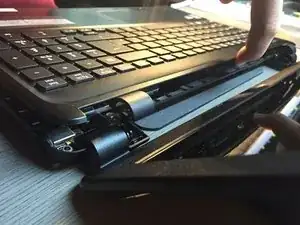

  4. VJ4N4AnnZihhYv2g
    VJ4N4AnnZihhYv2g
    YWKTltsXhPaHWQX5
    XJkZ6pEQLxyHjZhD

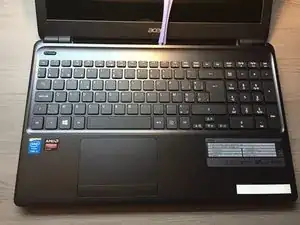

    • Start opening the top starting at the side of the screen

    • Use plastic tools to avoid damaging the cover.

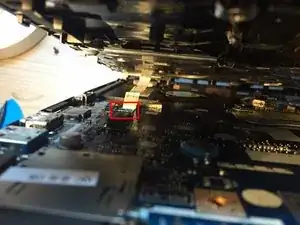

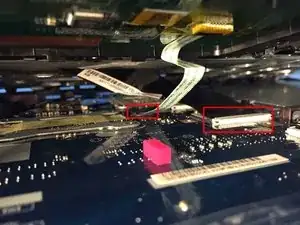

  5. 3BMUQsZMWNRTgKqa
    3BMUQsZMWNRTgKqa
    JyYuYHuj3PsYCNTP
    C4beaWcTQHnLGUwW

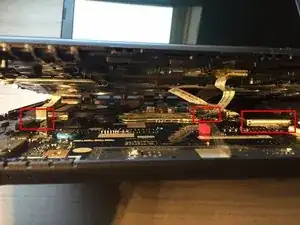

    • Disconnect 3x flex cables

    In my experience, the length and position of these flex cables can make it quite awkward to get them back in place. When reassembling, I always start from the back.

    Daniel Wright -

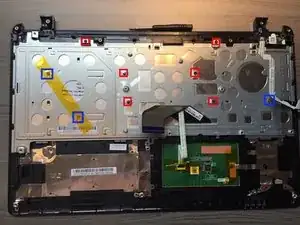

  6. guD5MR61RNVdiLhO

    • Remove 6x Philips screws

    • The 2 Philips screws at the top are different from the other 4 (thicker)

    • Remove 3x small (silver) Philips screws

  7. qOZV2e2MbEfydGHL

    • Remove the metal plate by sliding it up and then flipping it over

    • Be careful to not damage the flex cable attached to the metal plate.

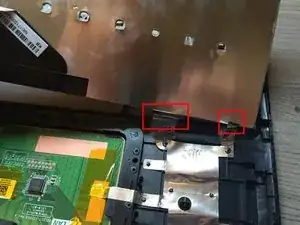

  8. iPuZX1bbBufIYvRj

    • Disconnect 2x aluminium grounding

    • Lift the keyboard out

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Sander Degryse

Mitglied seit: 23/07/14

293 Reputation

Ein Kommentar

Dear author,

I've done the replacement the exact same way, though I did it without your guide. Yet, my keyboard does not work properly after replacement i.e. WASD keys not working, UP DOWN LEFT RIGHT not working. What could be the problem? Kindly contact me via yukozashireiji@gmail.com

Yukozashi Reiji -
