Acer Aspire E3-111-C0WA Wireless Card Replacement

Geschrieben von: Jonathan Chandler
  • Kommentare: 1
Acer Aspire E3-111-C0WA Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

If your wireless card needs replacement, follow the steps in this guide to remove it.

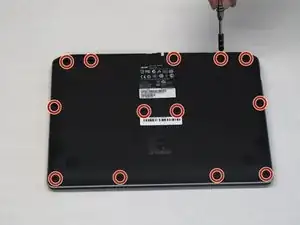

  1. OuZZXdvuY1H6GQ4s
    OuZZXdvuY1H6GQ4s
    qQrmy152JqnMSP2X

    • Remove the 13 indicated screws (6.2 mm) using a Phillips #1 screwdriver.

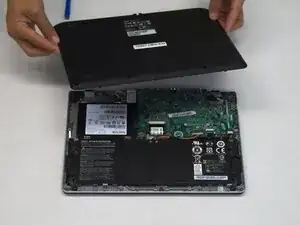

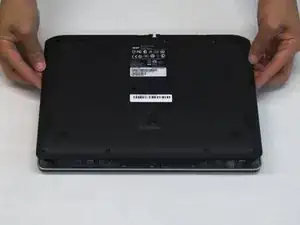

  2. nPtyC3sfcRCIpyLX
    nPtyC3sfcRCIpyLX
    VVp13aVFObaPWf4K
    PMRsWoOWGmXMHjxN

    • Insert your plastic opening tool between the bottom case and the rest of the laptop.

    • Using the plastic opening tool as a lever, apply downward pressure on the tool to lift the bottom up.

    • Make your way around the case with the tool, every so often applying downward pressure to lift the bottom up.

    • Lift the bottom off the laptop.

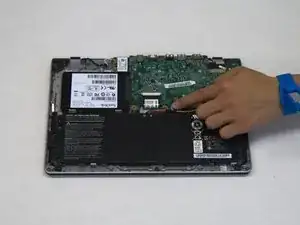

  3. aAQdhUIcSOVTpLTU
    aAQdhUIcSOVTpLTU
    BIhKPytDxmyD2XoR

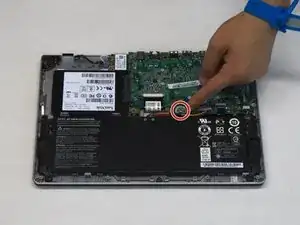

    • Make sure you have properly grounded yourself to avoid potentially damaging any internal components by wearing the anti-static wrist strap and attaching the clip end to metal.

    • Press and hold the battery discharge button on the motherboard for 5 seconds to drain the battery.

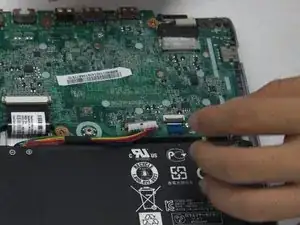

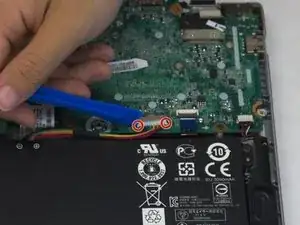

  4. AUWxkDYDCoiOdy6U
    AUWxkDYDCoiOdy6U
    YbKbIytvUfcQOYEd
    6VgZCVvYPrxGFEQd

    • Dislodge the battery's connector to the motherboard by using the plastic opening tool as a lever on the two small plastic tabs that stick out on either side of the connector.

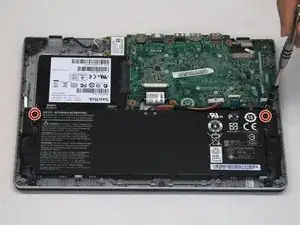

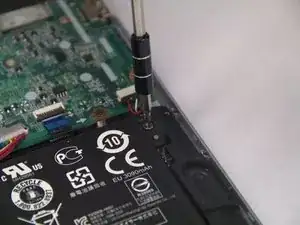

  5. rVjxfBjTLN6umrYS
    rVjxfBjTLN6umrYS
    URq1QK3AcwUAYm5X

    • Unscrew the two 6.2 mm Phillips #1 head screws on either side of the battery as indicated.

  6. MdBTaB1mjPYs3tLe
    MdBTaB1mjPYs3tLe
    MaH3JThwNZSE3xae

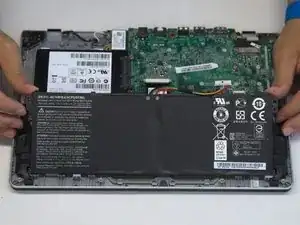

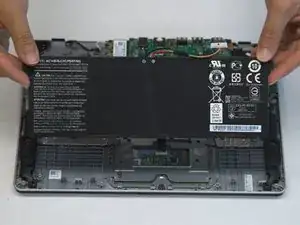

    • Lift the battery up and off the rest of the laptop.

  7. TJFsfCvHBZYVpCta
    TJFsfCvHBZYVpCta
    KwwKhM1luq6kuH43

    • Remove the two antenna cables from the wireless card. These should snap lightly out of place when lifted upwards.

    I was able to skip this Step 7 because the antenna leads were long enough for the card to slide out after removing the retaining screw as shown in Step 8.

    Brian Satow -

  8. sLMYmihAUX5xssci
    sLMYmihAUX5xssci
    t6QAyLhSWZP5jcYc
    ddY5AaDXiBkQSryB

    • Remove the 6.2mm #1 Phillips head screw attaching the wireless card to the case.

    • Pull the wireless card horizontally away from the motherboard to remove it from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
