Acer Aspire E5-511p-C6US Keyboard Replacement

Geschrieben von: Aaron
  • Kommentare: 0
Acer Aspire E5-511p-C6US Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

  1. 4hlyjxMSdsP4EPCU
    4hlyjxMSdsP4EPCU
    FZsoovvtOFOnaP2a
    C13ywakpBpISEtCs

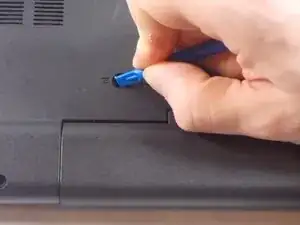

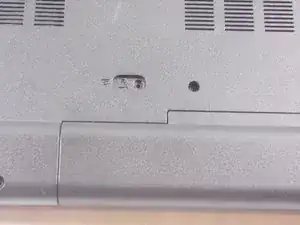

    • On the back of the laptop, there is a sliding lock. Push the slider and the battery will unlock

  2. Iif4FJHtTRMySphn

    • Pull battery to remove.

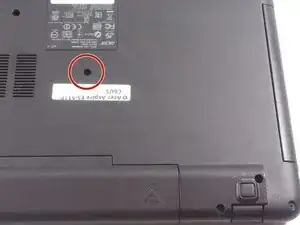

  3. ebxER1W5PFu2WShU
    ebxER1W5PFu2WShU
    kJI2cHB4KInT5o1P

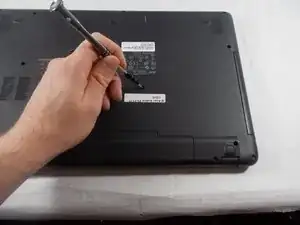

    • Remove the 1 screw just above the battery with a Phillips #1 screwdriver.

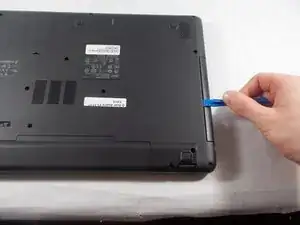

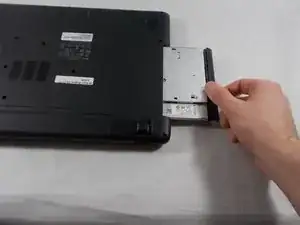

  4. iRJVOVEIiFltZnM4
    iRJVOVEIiFltZnM4
    kLOBbWVYXo4ADD6E

    • Pull the Optical Drive out

  5. iyHiJNWXboD3Ve4p

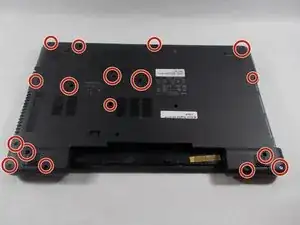

    • Remove the 17 Phillips #1 screws remaining on the back side of the laptop

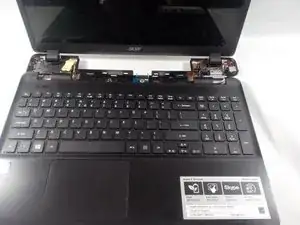

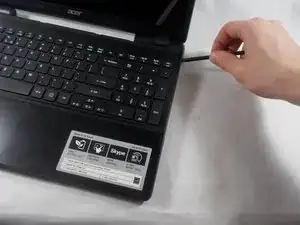

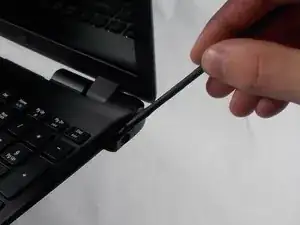

  6. saMG4YSvSqOVmY6H
    saMG4YSvSqOVmY6H
    yCBMxCgu5msqOoB5
    EunuHMaFlo1GSqqC

    • Flip over the laptop, Using the spudger separate the body of the keyboard from the base of the laptop.

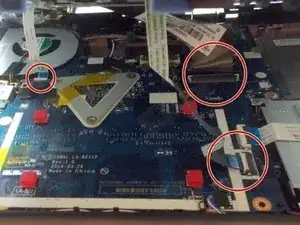

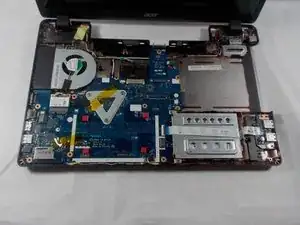

  7. m6Wxjpl2AEUGGqUV
    m6Wxjpl2AEUGGqUV
    QRnVQXPoVJgFGSD5

    • Carefully lift the keyboard and disconnect the 3 ribbon style connectors from the computers boards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
