Is your laptop overheating or staying on for a few minutes and then powering itself down? Your CPU Fan may be to blame. This guide will show you how to replace it.
-
-
Place the pointed end of a spudger into the battery lock and slide it to the left until you hear the battery release.
-
-
-
Move around the edge with metal spudger and carefully pry apart the clips holding the keyboard in place.
-
-
-
Carefully detach the three ZIF ribbons connected to the motherboard by flipping up the white hinge.
-
Lift up on the keyboard and the whole top should come right off, including the touchpad.
-
-
-

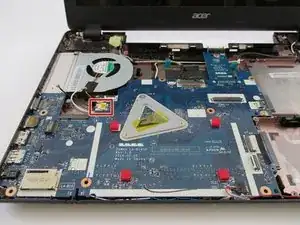

Locate the two antenna cables shown.
-
Using a plastic opening tool, remove both antenna cables from the WiFi card by gently prying them up.
-
-
-
Remove this 3 mm Phillips #0 screw and the WiFi card should pop up.
-
Gently lift WiFi card off of the motherboard.
-
-
-

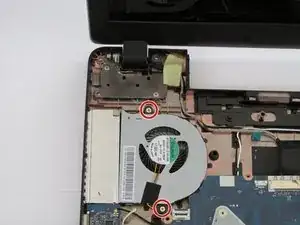

Remove both of these 6 mm Phillips #1 screws which hold the fan onto the case.
-
Now carefully lift the fan straight up and out of its place in the case.
-
To reassemble your device, follow these instructions in reverse order.
