Acer Aspire E5-571-58CG CPU Fan Replacement

Geschrieben von: Brendan Cuthill
  • Kommentare: 0
Acer Aspire E5-571-58CG CPU Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

If your device is overheating, you may need to replace the laptop's CPU Fan. This guide will help you through this process.

  1. 5FehMJVpg664WPjR
    5FehMJVpg664WPjR
    U1BDFySEk2fXxgIY

    • Make sure the laptop is powered off.

    • Flip the laptop over and locate the battery release switch.

    • Insert the pointed end of the spudger into the battery release switch.

    • Push the battery release switch to the right.

  2. IaBNMwg6bTKRRAXG
    IaBNMwg6bTKRRAXG
    MEXg5sc3JEORnKfF
    KnbBeAhugPprJHFi

    • While the battery release switch is pushed to the right, carefully slide the battery out of its socket.

  3. 6BrsShE4HaVgEVIY
    6BrsShE4HaVgEVIY
    nJrwjMNbllXTRsko
    3AvcLMsH13dXgEWO

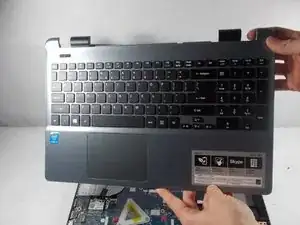

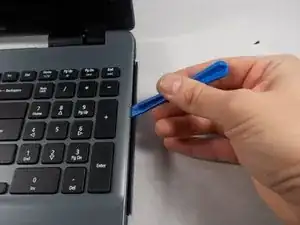

    • Remove the top panel of the laptop with the plastic opening tool.

  4. cuv5fN5SoPBNVSm4
    cuv5fN5SoPBNVSm4
    wE1HQNdZHf4qRIKo

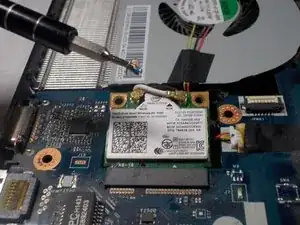

    • Use a JIS #000 screw bit to remove the marked screw.

  5. LbmWgdTVsGweHkXh
    LbmWgdTVsGweHkXh
    SWWnXGEudfGkaXyK

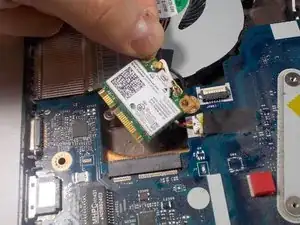

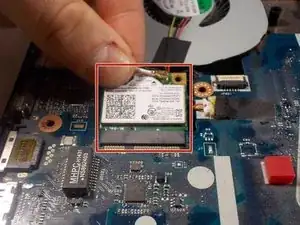

    • Carefully pull the marked green chip out of the motherboard.

  6. cC2pw2VDZTmuDtkG
    cC2pw2VDZTmuDtkG
    noVEIYmNMIwggFNQ

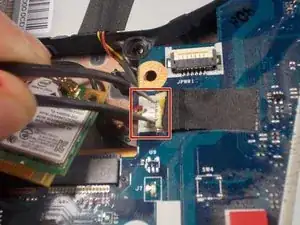

    • Use tweezers to unplug the wire connecting the fan to the motherboard.

  7. jiLMeORN41UN1v5J
    jiLMeORN41UN1v5J
    pNWWQBTKhpZMjgjr
    bGZLcnoEyTmHvGmI

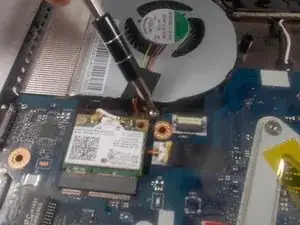

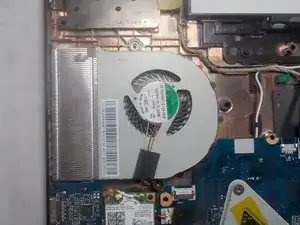

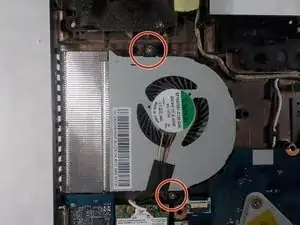

    • Use a JIS #00 screw bit to remove the marked screws around the CPU fan.

    • Carefully remove the CPU fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
