Acer Aspire E5-571-58CG Touchpad Replacement

Geschrieben von: Daniel Mello
  • Kommentare: 0
Acer Aspire E5-571-58CG Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

50 Minuten

Einleitung

A broken touchpad may interfere with your ability to use the laptop, and it may need to be replaced. This guide will help you through this process.

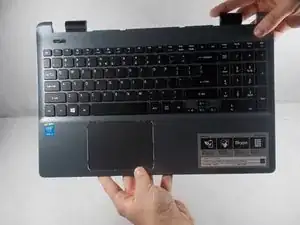

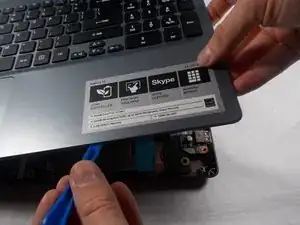

  1. uFbkLQEvOPJABBte
    uFbkLQEvOPJABBte
    bPUgeQeFypHLuNpa
    tGHDMhIHFxKyeXXn

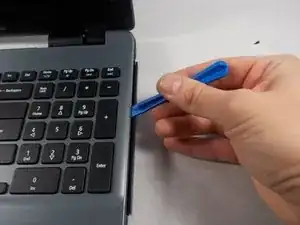

    • Make sure laptop is upright.

    • Pry the keyboard cover off with the plastic opening tool.

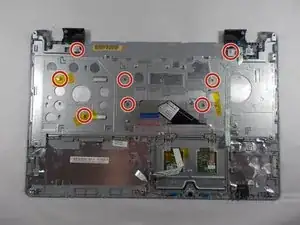

  2. GqwhL2oT4qUerrlV
    GqwhL2oT4qUerrlV
    nfYbulWwkbxwkExc
    S2nIPDUshTKIsZlj

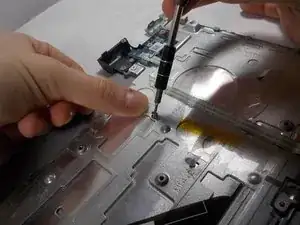

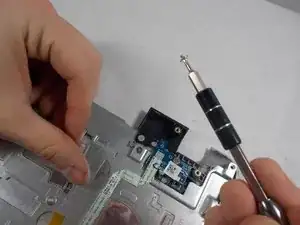

    • Flip the keyboard cover upside down.

    • Use the JIS #000 screw bit to remove the marked M1.4 x 2 mm screws from the back of the metal panel.

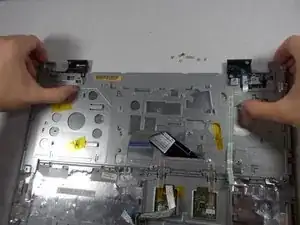

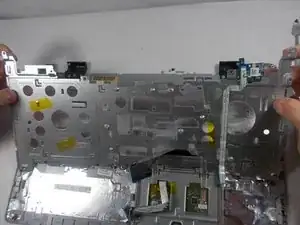

  3. 4iQTml6mu2hRgjBA
    4iQTml6mu2hRgjBA
    SatVFiyjyyAAIBsc
    ZCTHNusAWnxYBNBU

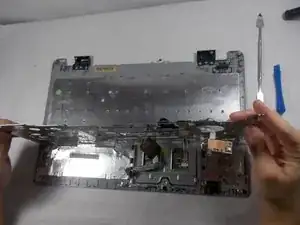

    • Push the metal panel forward to unlock it from plastic holders on both sides.

    • Lift the metal panel up and peel it back to expose the keyboard component.

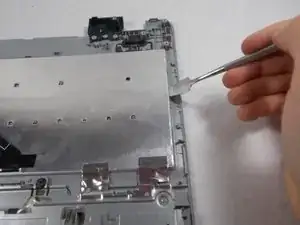

  4. DnnCyIYP3wZHvWVJ
    DnnCyIYP3wZHvWVJ
    wApsNua2ffvAYCQa
    E2KTTAVPvjmtK1RB

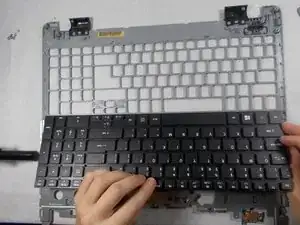

    • Use the metal spudger to lift the keyboard component out of the metal panel.

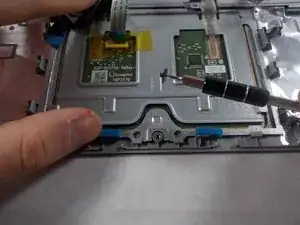

  5. JDZfivHwPJFZRdMt
    JDZfivHwPJFZRdMt
    nrRNoUkmNvboLoRb

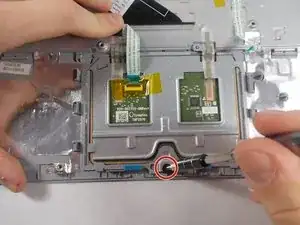

    • Make sure you have removed the keyboard before attempting to remove the touchpad.

    • Use a 1 1/2 mm flathead screw bit to remove the black screw at the bottom of the panel.

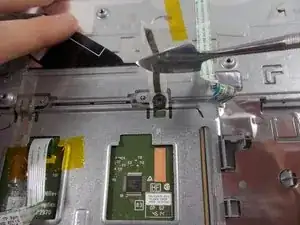

  6. ELATTBXXNXRYkFHA
    ELATTBXXNXRYkFHA
    OK5sJD1quKZX2Xp1
    5glMMWfXp5qqeMcl

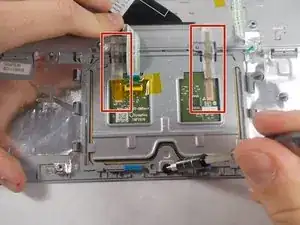

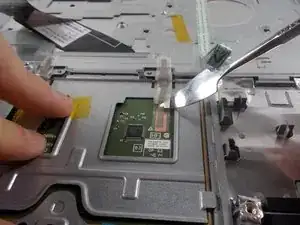

    • Peel back the marked strips with the metal spudger.

  7. LWHcli133ZRkICRn
    LWHcli133ZRkICRn
    TIXCaxAskMbvMahD
    F5LeVnRVhDEEfETI

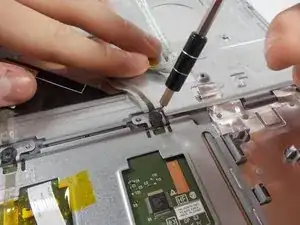

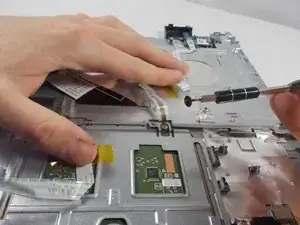

    • Use a 1 1/2 mm flathead screw bit to remove the two black screws at the top of the panel.

  8. nSeYDoucfCgIIJOG
    nSeYDoucfCgIIJOG
    PSeuFAfMggJGye1O

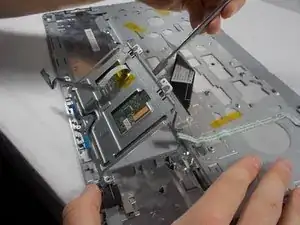

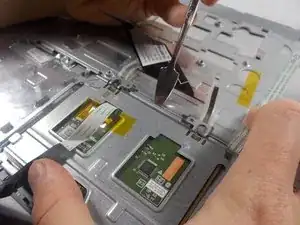

    • Lift the touch pad out of the metal panel with a metal spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
