The motherboard in your Acer Aspire E5-571P-55TL holds all of the other parts together, and allows for communication between hardware components. With a non-functional motherboard, your laptop will have many problems. To see common issues which may require motherboard replacement, see our Acer E5-571P-55TL troubleshooting guide.
This guide will explain how to replace the motherboard for the Acer E5-571P-55TL. Before performing actions in this guide be sure to power off your laptop and remove the power adapter.
Werkzeuge
-
-
Place the Spudger into the battery lock and slide it to the left until you hear the battery unlock.
-
-
-
Using a Phillips #0 screwdriver, remove each of the eighteen 8 mm screws from the bottom of the laptop.
-
-
-
Carefully place your fingers underneath the top of the keyboard just below the screen.
-
Pull upwards until you can hear the keyboard click out of place.
-
Continue around the entire laptop, carefully pulling the keyboard and palm rest assembly slightly from the frame to reveal the ribbon connectors.
-

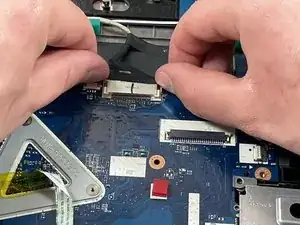

After the keyboard is detached, unplug each of the three ribbon cables and remove the keyboard and palm rest assembly.
-
-
-
Using a Philips #0 screwdriver, remove the two 3 mm screws from the corners of the Wi-Fi card.
-

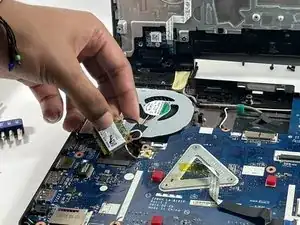

Carefully lift the network card from it's slot, and disconnect the two coaxial cables.
-
-
-

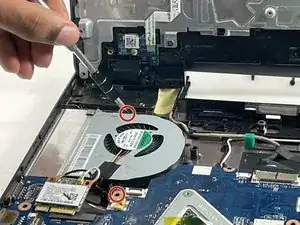

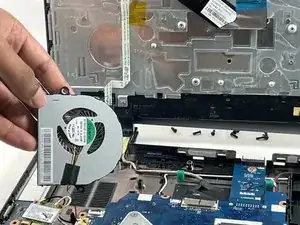

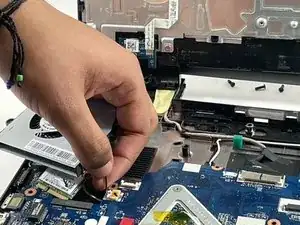

Use tweezers to safely remove the fan plug from the motherboard. To remove the plug, gently push left.
-
-
-
Using a Phillips #0 screwdriver, remove the two 8 mm screws holding the hard drive carriage in place.
-
-
-
Carefully unplug the ribbon cable running across the hard drive carriage and place it to the side.
-
Remove the hard drive by sliding it to your right, away from the motherboard, next pull the hard drive towards yourself and away from the laptop.
-
-
-

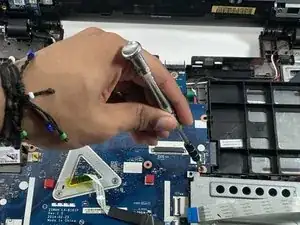

Once again using a Phillips #0 screwdriver, remove the two 3 mm screws highlighted on each side of the hard drive case.
-
Open the hard drive case to replace the hard drive.
-
-
-

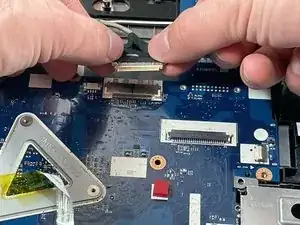

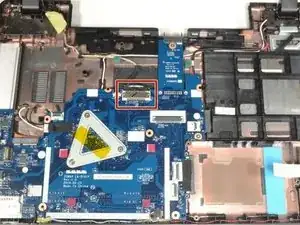

The last connection to the motherboard is the screen. Gently disconnect the cable from the motherboard.
-
-
-

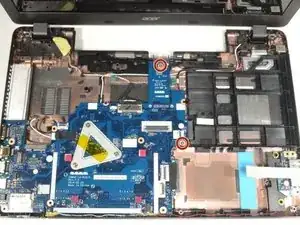

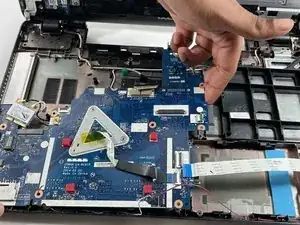

Lift the motherboard up from the top right corner, and then pull it right to release it from the case.
-
To reassemble your device, follow these instructions in reverse order.
