Acer Aspire E5-573G Battery Replacement

Geschrieben von: Alex Bahm
  • Kommentare: 1
Acer Aspire E5-573G Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will show you how to replace an old or faulty battery on the Acer Aspire E5-573G.

  1. ORXgJEhODREodthd

    • Ensure your device is OFF before beginning this procedure.

    • Unscrew the 5 mm Phillips head screw holding the drive in place.

  2. dCdCIaFFYygPdAbA

    • Pull out the disk drive.

  3. h1rXZYH1CCIUBDva

    • Unscrew the seventeen 5 mm Phillips head screws from the bottom cover.

  4. NLDu43GjmavAiy3s

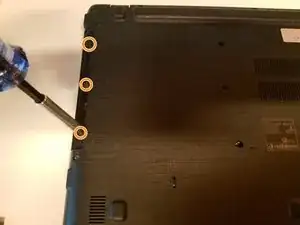

    • Unscrew the three 2.5 mm Phillips head screws underneath the optical drive bay.

  5. dSEBpfnoYvxMrxUN

    • Run a pick between the bottom cover and the device around the edge of the laptop and unclip the cover from the rest of the device.

  6. p5HBOsOOOclXmc2D

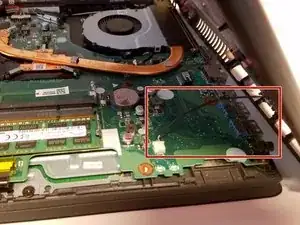

    • Lift the left side of the bottom cover, but do not completely remove the cover, as the speaker is cable is still connected and will be damaged.

    • Pull the speaker connector towards the fan to disconnect it from its socket on the motherboard.

  7. 5ABVPd5QKUJoNYnC

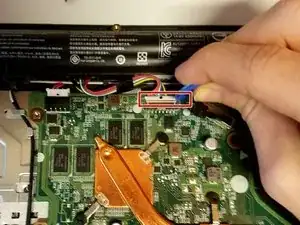

    • Pull the battery connector towards the battery to disconnect it from its socket on the motherboard.

    • Remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
